Magphant
Electromagnetic flowmeter

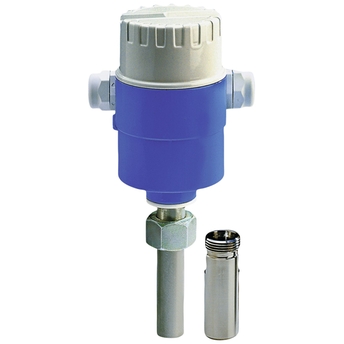

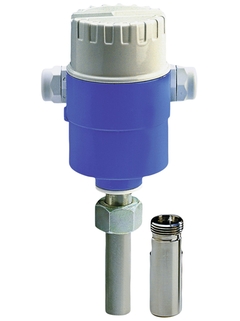

Product picture of: Magphant - Electromagnetic flowmeter ©Endress+Hauser

The Electromagnetic Flow Measuring Principle

The cost-effective limit switch for reliable and repeatable flow monitoring

The cost-effective, compact limit switch Magphant is an ideal flowmeter for water applications in Utilities. Its reliable measurement with high repeatability allows for univesal and easy use and supports safe process- and plant operation.

  • Fordele

    • High plant availability – reliable flow information

    • Energy-saving flow measurement – no pressure loss due to cross-section constriction

    • Maintenance-free – no moving parts

    • Process safety – device self-monitoring and reliable monitoring even with empty piping

    • Product safety – integrated testing to check correct functioning of the electronics

    • ...

  • Anvendelsesområde

    • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity

    • Universally usable for all water applications in Utilities.

    Device properties

    • Compact, space-saving design

    • Nominal diameter: DN 15 to 2000 (1/...
