Raman Rxn5 process analyzer

Turn-key process Raman analyzer for quantitative chemical composition measurements

KRXN5B

Sammenligne

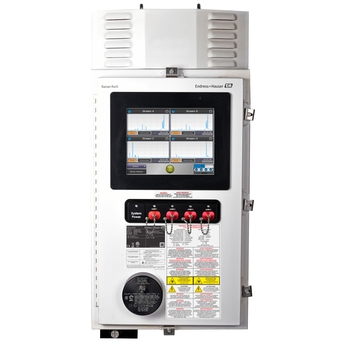

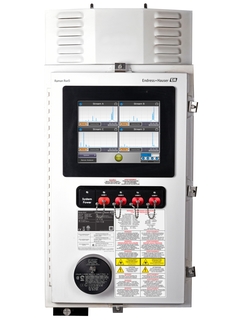

Product Picture Raman Rxn5fProcess analyzer front view

Oversigt over specifikationer

Laser wavelength

532 nm
Spectral coverage

150-3425 cm-1 (532 nm)

Se alle specifikationer

Anvendelsesområde

The Raman Rxn5 process analyzer is an industry-leading, turn-key, laser-based analyzer powered by Kaiser Raman technology. It provides quantitative chemical composition measurements using Raman spectroscopy. The design of the Raman Rxn5 incorporates customer requirements for serviceability and hazard-area certification, provides a compact footprint, and minimizes utilities consumption. The high optical efficiency of the analyzer makes it ideal for typical gas-phase sample measurements.

Process measurement points:

Steam methane reformers

Gasifiers (coal, petcoke, waste, biomass)

Shift converters

Hydrotreaters

Hydrocrackers

CO₂ removal

Finished product synthesis loops

Typical industries:

Hydrogen production/purity, HyCO, Hydrogen recycle,

Methanol production

Ammonia production

Gas turbine fuel feed

Synthetic natural gal/IGCC power plants

LNG baseload customer transfer, LNG rundown to storage tanks, LNG mixed refrigerant optimization

Fordele

Non-destructive analysis of gases, including homonuclear diatomics (H₂, N₂, O₂)
Compact, smaller than most wall-mount GCs
Can replace up to four traditional analyzers with a single base unit and four probes
Rugged with minimal utility requirements, no sample transport, and no consumables (columns, valves, gases, pumps)
Minimal analyzer technician time with maximum technician safety (no toxic gases are transported to the analyzer)
Measures four streams simultaneously for fastest multi-channel results
-20°C to + 50°C operating environment

Extended

Avancerede produkter
Funktionelle og praktiske

Teknisk ydeevne

Enkelhed

Hvad er FLEX?

Enkle produkter
Nemme at vælge, installere og betjene

Teknisk ydeevne

Enkelhed

Hvad er FLEX?

Standardprodukter
Pålidelige og robuste med lav vedligeholdelse

Teknisk ydeevne

Enkelhed

Hvad er FLEX?

Avancerede produkter
Funktionelle og praktiske

Teknisk ydeevne

Enkelhed

Hvad er FLEX?

Specialiserede produkter
Designet til krævende applikationer

Teknisk ydeevne

Enkelhed

Variabel

Hvad er FLEX?

FLEX valg	Teknisk ydeevne	Enkelhed
F L E X Fundamental Få dækket dine basale målebehov	Teknisk ydeevne	Enkelhed
F L E X Lean Administrer nemt dine kerneprocesser	Teknisk ydeevne	Enkelhed
F L E X Extended Optimer dine processer med innovative teknologier	Teknisk ydeevne	Enkelhed
F L E X Xpert Til de mest udfordrende applikationer	Teknisk ydeevne	Enkelhed Variabel

Lær mere om FLEX

Loading alternative products

Succeshistorier

Hydrogen blending for natural gas-fired turbines

Long Ridge Energy power plant is successfully showcasing the viability of clean hydrogen in the global Power & Energy industry.
Læs hele historien
Improved measurement of water content in natural gas

New TDLAS analyzers use updated designs and more connectivity options to provide high accuracy and reliability without traditional problems.
Læs hele historien
H2O in natural gas production, storage and transportation

How to measure water moisture in pipelines in the natural gas supply chain with TDLAS technology.
Læs hele historien
LNG: truck loading

Find out how to accurately measure the composition of LNG at truck loading with the use of a Raman Rxn4 analyzer.
Læs hele historien
Raman method for custody transfer measurements of LNG

Check out the findings from the GERG report on the use of a Raman Rxn4 analyzer and Raman Rxn-41 cryogenic probe for the reliable chemical composition measurement in LNG custody transfer applications.
Læs hele historien

Måske også interessant for dig

Relaterede emner

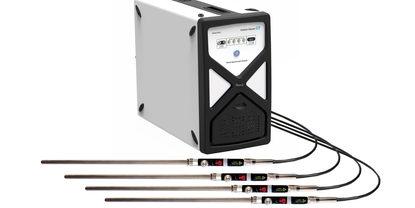

Raman-spektroskopi – avanceret optisk analyseteknologi
