Oversigt over specifikationer
-
Accuracy
(Pt100,Pt1000, -50…+250°C) <= 0,1 K
(Pt100,Pt1000, -58…+482°F) <= 0,18° F
Anvendelsesområde

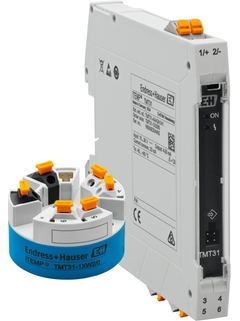

The iTEMP TMT31 is a reliable, long-term stable, single-channel 4 to 20 mA temperature transmitter for thermometers with terminal head Form B suited for use in Zone 2 / Div. 2 areas. Individual transmitter-sensor matching with Callendar-Van Dusen linearization further improves your temperature measurement accuracy for RTD sensors. Push-in terminals for quick wiring facilitate installation. The device is available pre-configured or can easily be parametrized using free software tools.
Highly accurate and reliable temperature measurement for various industrial and hygienic process applications
Certified for use in Zone 2 (Ex ec) / Div. 2 areas
Input: Single RTD sensor input for Pt100 or Pt1000 (2-/3- or 4-wire) sensors
Output: 4 to 20 mA analog output
Configurable or factory-set fixed parameters
Installation in terminal heads Form B as per DIN EN 50446
Fordele
Push-in terminals for fast, tool-free wiring during installation or maintenance
Simple parametrization via free software tools (requires FXA291 or TXU10)
Transmitter-sensor matching using Callendar-Van Dusen linearization for critical measurement points
Improved RTD measurement accuracy up to 0.1 K and long-term stability
Diagnostics information according to NAMUR NE 107
Ready-to-use: Factory pre-configured
Videoer
Fundamental
-
Enkle produkter
- Nemme at vælge, installere og betjene
Teknisk ydeevne
Enkelhed

-
Standardprodukter
- Pålidelige og robuste med lav vedligeholdelse
Teknisk ydeevne
Enkelhed
-
Specialiserede produkter
- Designet til krævende applikationer
Teknisk ydeevne
Enkelhed
Variabel
FLEX valg | Teknisk ydeevne | Enkelhed |
---|---|---|
Fundamental Få dækket dine basale målebehov |
Teknisk ydeevne
|
Enkelhed
|
Lean Administrer nemt dine kerneprocesser |
Teknisk ydeevne
|
Enkelhed
|
Extended Optimer dine processer med innovative teknologier |
Teknisk ydeevne
|
Enkelhed
|
Xpert Til de mest udfordrende applikationer |
Teknisk ydeevne
|
Enkelhed
Variabel |
Forgænger
-
-
Teknisk information (TI)
iTEMP TMT31
Engelsk version - 06/2021
Temperature transmitter
EN DA 30/06/2021Sprog:
Engelsk
Version:
30/06/2021
Filstørrelse:
1.1 MB
Filnavn:
TI01613TEN_0121-00.pdf
-
-
-
Ex Sikkerheds Brugsanvisning (XA)
iTEMP TMT31
Dansk version - 10/2021
ATEX: Ex ec IIC Gc
EN DA 29/10/2021Sprog:
Dansk
Version:
29/10/2021
Filstørrelse:
439.3 KB
Filnavn:
XA02682TDA_0121-00.pdf
-
-
-
Teknisk information (TI)
iTEMP TMT31
Temperature transmitter
EN DA 30/06/2021Sprog:
Engelsk
Version:
30/06/2021
Filstørrelse:
1.1 MB
Filnavn:
TI01613TEN_0121-00.pdf
-
-
-
Betjeningsvejledining (BA)
iTEMP TMT31
Temperature transmitter
EN DA 29/10/2021Sprog:
Engelsk
Version:
29/10/2021
Filstørrelse:
1.4 MB
Filnavn:
BA02157TEN_0121-00.pdf
-
-
-
Instrument parameter(GP)
iTEMP TMT31 Description Device parameters
Temperature transmitter
EN DA 01/12/2021Sprog:
Engelsk
Version:
01/12/2021
Filstørrelse:
555.3 KB
Filnavn:
GP01182TEN_0121-00.pdf
-
-
-
Kort instruktion (KA)
iTEMP TMT31
Temperaturtransmitter
EN DA 20/05/202208/12/202103/12/2021Sprog:
Dansk
Version:
20/05/2022
Filstørrelse:
498.2 KB
Filnavn:
KA01540TDA_0322-00.pdf
-
-
-
Ex Sikkerheds Brugsanvisning (XA)
Control drawing CSA
Control drawing CSA
Sprog:
Engelsk
Version:
05/09/2022
Filstørrelse:
74.7 KB
Filnavn:
10000012751.pdf
-
-
-
Ex Sikkerheds Brugsanvisning (XA)
iTEMP TMT31
ATEX: Ex ec IIC Gc
EN DA 29/10/2021Sprog:
Dansk
Version:
29/10/2021
Filstørrelse:
439.3 KB
Filnavn:
XA02682TDA_0121-00.pdf
-
-
-
Special Dokumentation (SD)
Device viewer
Technical documentation in other languages
Sprog:
Engelsk
Version:
14/07/2021
Filstørrelse:
478.5 KB
Filnavn:
SD02429R09EN_0121.pdf
-
-
-
PU (udgivelse)
Next Level Hygienic: Complete offering for the Food & Beverage and Life Sciences industries
Endress+Hauser offers innovative temperature sensors and assemblies, system products, accessories, software solutions and related services for hygienic, sterile and aseptic applications in the food & beverage and life sciences industries governed by stringent quality and safety regulations.
EN DA 05/08/2022Sprog:
Engelsk
Version:
05/08/2022
Filstørrelse:
25.5 MB
Filnavn:
PU01305T_09_EN_03.22.pdf
-
-
-
Aktivitetsområder (FA)
Temperature measurement
Thermometers and transmitters for the process industry
EN DA 17/05/2023Sprog:
Engelsk
Version:
17/05/2023
Filstørrelse:
18 MB
Filnavn:
FA00006Ten_2223_online.pdf
-
-
-
Producent erklæring
Product family: Head transmitters
Product root: TMT31- Declaration number: HE_01542_01.21 Manufacturer specification: RoHS Additional information: China RoHS
EN DA 26/11/2021Sprog:
Engelsk
Version:
26/11/2021
Filstørrelse:
283.6 KB
Filnavn:
HE_01542_01.21 China RoHS TMT31.pdf
-
