Memosens CLS82D is a hygienic conductivity sensor for the life sciences, pharma and food industries.

Digital 4-electrode conductivity sensor
Memosens CLS82D

Memosens conductive conductivity sensor for hygienic applications in Life Sciences, Pharma and Food

CLS82D
Indlæser pris
Priser er midlertidigt utilgængelige
Price on request
aktiverer pris
pris: information ønskes
from CHF ??.-

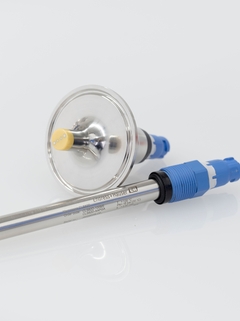

The Memosens CLS82D conductivity sensor is available with a wide range of process connections.
  • F
  • L
  • E
  • X
©Endress+Hauser

The Memosens CLS82D conductivity sensor is available with a wide range of process connections.

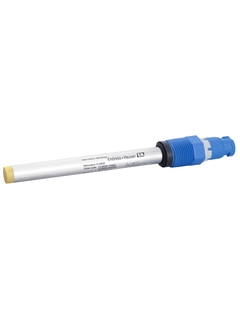

Memosens CLS82D with compact 12mm design.
  • F
  • L
  • E
  • X
©Endress+Hauser

Memosens CLS82D with compact 12mm design.

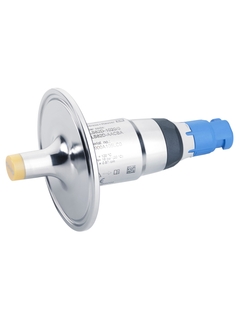

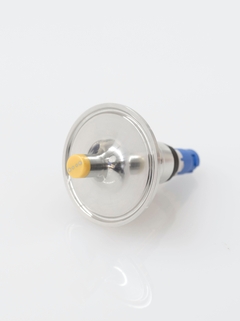

Memosens CLS82D with clamp connection.
  • F
  • L
  • E
  • X
©Endress+Hauser

Memosens CLS82D with clamp connection.

The 4-electrode technology supports a broad measurement range in hygienic applications.
  • F
  • L
  • E
  • X
©Endress+Hauser

The 4-electrode technology supports a broad measurement range in hygienic applications such as chromatography, phase separation or fermentation.

The hygienic design of the sensor is certified by EHEDG and 3-A.
  • F
  • L
  • E
  • X
©Endress+Hauser

The hygienic design of the sensor is certified by EHEDG and 3-A.

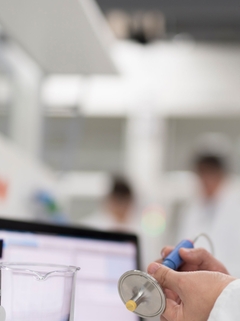

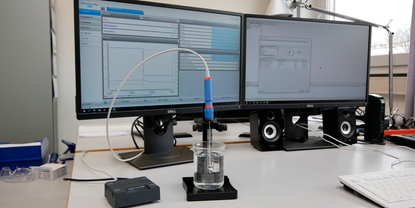

Conveniently maintain and calibrate your CLS82D sensor in the laboratory with Memobase Plus CYZ71D.
  • F
  • L
  • E
  • X
©Endress+Hauser

Conveniently maintain and calibrate your Memosens CLS82D sensor under controlled conditions in your lab with the Memobase Plus software.

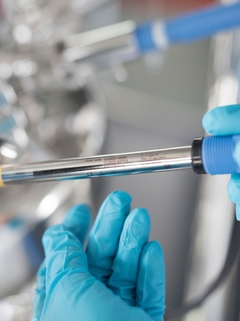

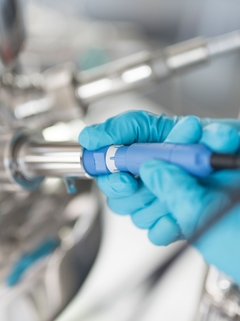

Install the precalibrated sensor in your fermenter and your measurement is instantly ready.
  • F
  • L
  • E
  • X
©Endress+Hauser

Install the precalibrated Memosens CLS82D sensor in your fermenter and your measurement is instantly ready for the next batch.

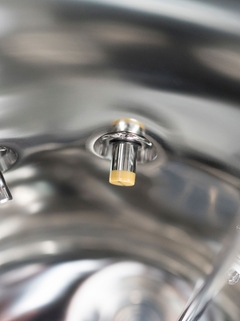

The sensor's position in a fermenter.
  • F
  • L
  • E
  • X
©Endress+Hauser

The sensor's position in a fermenter.

The Memosens CLS82D conductivity sensor is available with a wide range of process connections.

Oversigt over specifikationer

  • Measurement range

    1 µS/cm to 500 mS/cm

  • Process temperature

    -5 to 120 °C (23 to 248 °F)
    Sterilization: max. 140 °C at 6 bar for max. 45 min
    (Max. 284 °F at 87 psi for max. 45 min)

  • Process pressure

    17 bar abs at 20 °C (247 psi at 68 °F)
    9 bar abs at 120 °C (131 psi at 248 °F)

Anvendelsesområde

Memosens CLS82D is a hygienic, digital sensor for applications with widely varying conductivity values, where it performs reliably, safe and fast. Numerous certificates, various process connections and a small compact design ensure the perfect fit for your process. Memosens CLS82D is not the latest Memosens generation. To get information on the new Memosens CLS82E sensor with extended functionality, click here.

Memosens CLS82D measures conductivity in applications that need to cover a broad measuring range as in:

  • Phase separation

  • Downstream processing

  • Fermentation

  • Final rinse in pharma applications

With its international explosion protection approvals, such as ATEX, FM, CSA and NEPSI, the digital sensor is suitable for hazardous area use.

Fordele

  • Broad measurement range

  • Hygienic design certified by EHEDG and 3-A

  • Absolute loop safety thanks to Memosens and unique electrode connection surveillance

  • Sterilizable and autoclavable

  • Quality certificate stating the individual cell constant

  • Logging of sensor-specific data for easy traceability and predictive maintenance

  • Convenient maintenance strategy with Memobase Plus for easy calibration and sensor management

Videoer

  • This video shows how Memosens CLS82D uses the 4-electrode measuring principle to reach maximum accuracy over a wide conductivity range and why it is perfectly suited for hygienic applications.

  • Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.
