Prosonic FDU90 - Ultrasonic measurement

Ultrasonic measurement
Time-of-Flight

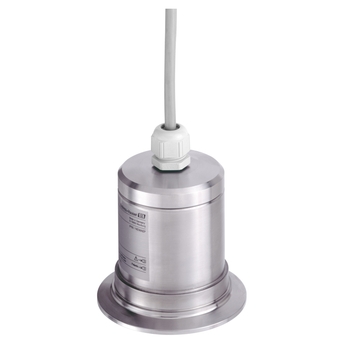

Prosonic FDU91F

Hygienic sensor for level and flow measurement for connection to FMU9x (measuring range up to 10m)

FDU91F
please wait
Indlæser pris
Priser er midlertidigt utilgængelige
from CHF 803.-

Oversigt over specifikationer

  • Process temperature

    -40 °C ... 105 °C
    (-40 °F ... 221 °F)
    CIP: 30 min: 135 °C
    (30 min: 275 °F)

  • Process pressure absolute / max. overpressure limit

    0.7 bar ... 4 bar abs
    (10 psi ... 58 psi)

  • Max. measurement distance

    Max. measurement distance

  • Accuracy

    +/- 2 mm + 0.17% of measured distance

  • Main wetted parts

    316L (fully welded IP68 / NEMA 6P)

Anvendelsesområde

The FDU91F ultrasonic sensor for continuous, non-contact and maintenance-free level measurement of fluids, pastes, sludges and powdery to coarse bulk materials. Also for flow measurement in open channels and at weirs. Measurement is unaffected by dielectric constant, density or humidity and also unaffected by build-up due to the self-cleaning effect of sensors. Fully welded 316L with hygienic process connection available. Maximum measuring range in liquids 10m (33ft), solids 5m (16ft).

Continuous, non-contact level measurement of fluids and bulk materials in silos, on belts, stockpiles or in crushers. Also for flow measurement in open channels and at weirs. Used in measurements in low structural heights.

  • Process connections: Thread, Tri-Clamp

  • Temperature: -40 to +105°C (-40 to +221°F)

  • Pressure: 0.7 to 4bar (10 to 58psi)

  • Max. measuring range: Liquids 10m (33ft), solids 5m (16ft)

  • Blocking distance: 0.3m (1ft)

  • International explosion protection certificates, hygienic certificates

Fordele

  • Integrated temperature sensor for Time-of-Flight correction. Accurate measurements are possible, even if temperature changes are present

  • Hermetically welded sensors (316L, 1.4404, 1.4435) for highest chemical resistance

  • Suited for rough ambient conditions thanks to separate installation from the transmitter
    (up to 300m)

  • Reduced build-up formation because of the self-cleaning effect

  • Integrated automatic sensor detection for transmitters FMU90/FMU95 for simple commissioning

  • Weather resistant and flood-proof (IP 68)

  • Hygienic process connections available
