Prosonic FMU40 - Ultrasonic measurement

Ultrasonic measurement
Time-of-Flight
Prosonic FMU40

Cost effective device for sophisticated level measurement in liquids and bulk solids for up to 5m

FMU40
Indlæser pris
Priser er midlertidigt utilgængelige
Price on request
aktiverer pris
pris: information ønskes
from CHF ??.-

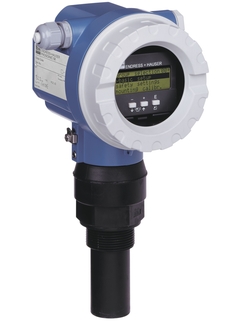

Prosonic FMU40
  • F
  • L
  • E
  • X
©Endress+Hauser

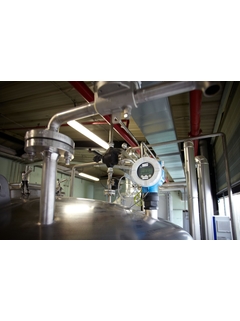

Prosonic FMU40 application chemical
  • F
  • L
  • E
  • X
©Endress+Hauser

Oversigt over specifikationer

  • Accuracy

    +/- 2 mm or +/- 0.2 % of set measuring range 1)

  • Process temperature

    -40 °C ... 80 °C
    (-40 °F ... 176 °F)

  • Process pressure / max. overpressure limit

    0.7 bar ... 3 bar abs
    (10 psi ... 44 psi)

  • Max. measurement distance

    Liquids: 5 m (16 ft),
    Solids: 2 m (6.6 ft)

  • Main wetted parts

    PVDF

Anvendelsesområde

The Prosonic FMU40 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.

Two-wire or four-wire instrument for continuous non-contact level and flow measurement.

  • Process connection: Thread

  • Temperature: -40 to +80°C (-40 to +176°F)

  • Pressure: +0.7 to +3bar (+10 to +44psi)

  • Maximum measuring distance: Liquids 5m (16ft), Solids 2m (16ft)

  • Blocking distance: Liquids and Solids 0.25m (0.8ft)

  • International explosion protection certificates

Fordele

  • Reliable non-contact measurement

  • Quick and simple commissioning via menu-guided on-site operation with four-line plain text display, 7 languages selectable

  • Envelope curves on the on-site display for simple diagnosis

  • Hermetically sealed and potted sensor

  • Chemically resistant sensor out of PVDF

  • Calibration without filling or discharging

  • Integrated temperature sensor for automatic correction of the temperature dependent sound velocity
