Point level detection

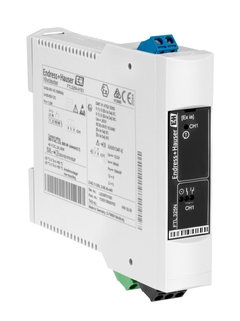

Nivotester FTL325N

Switching unit with NAMUR input for rail mounting or single installation

Nivotester FTL325N is a switching unit for point level detection in liquid tanks, also in hazardous explosion areas. Also suitable for overfill prevention in tanks with combustible or non-combustible liquids harmful to water. Two-point control and point level detection. The perfect fit for applications in safety related systems with requirements for functional safety up to SIL2 in accordance to IEC 61508 /IEC 61511 using Liquiphant with electronic insert FEL56 or FEL58.

Extended

Enkle produkter
Nemme at vælge, installere og betjene

Teknisk ekspertise

Enkelhed

Hvad er FLEX?

Standardprodukter
Pålidelige og robuste med lav vedligeholdelse

Teknisk ekspertise

Enkelhed

Hvad er FLEX?

Avancerede produkter
Funktionelle og praktiske

Teknisk ekspertise

Enkelhed

Hvad er FLEX?

Specialiserede produkter
Designet til krævende applikationer

Teknisk ekspertise

Enkelhed

Variabel

Hvad er FLEX?

FLEX valg	Teknisk ekspertise	Enkelhed
F L E X Fundamental Få dækket dine basale målebehov	Teknisk ekspertise	Enkelhed
F L E X Lean Administrer nemt dine kerneprocesser	Teknisk ekspertise	Enkelhed
F L E X Extended Optimer dine processer med innovative teknologier	Teknisk ekspertise	Enkelhed
F L E X Xpert Til de mest udfordrende applikationer	Teknisk ekspertise	Enkelhed Variabel

Lær mere om FLEX

Dimensionering

Sammenligne

Loading alternative products

Hurtigvalg

Vælg blandt de foreslåede muligheder

<%label%>
-- selected coding

-- selected label
<%label%>
Leder du efter flere indstillinger? Anvend den individuelle konfigurator for at fortsætte.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Leder du efter flere indstillinger? Anvend den individuelle konfigurator for at fortsætte.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

FTL325N

Vis detaljer Skjul detaljer

Vis detaljer

Tilbage til Hurtigvalg

<%feature%>

<%coding%>

<%label%>

Føj til indkøbskurv

Valgfrie tilføjelser

Anvend den individuelle konfigurator for at fortsætte.

eller

Individuel konfiguration

Fortsæt dit valg blandt alle muligheder

Konfigurér

Fordele
Nivotester FTL325N for connecting one, two or three measuring cells (1-, 2- or 3-channel devices)
Intrinsically safe signal circuits Ex ia for use of measuring sensor in explosion hazardous areas
Functional safety up to SIL2 through line monitoring
DIN...

Vis mere
Nivotester FTL325N for connecting one, two or three measuring cells (1-, 2- or 3-channel devices)
Intrinsically safe signal circuits Ex ia for use of measuring sensor in explosion hazardous areas
Functional safety up to SIL2 through line monitoring
DIN Rail housing for simple series installation on standard rails in switch cabinet
Simple wiring using pluggable terminal blocks
NAMUR interface to EN 50227 (DIN 19234; NAMUR) or IEC 60947-5-6 to connect NAMUR sensors or electronic inserts

Vis mindre

Anvendelsesområde
Switching unit with NAMUR input for rail mounting or single installation.

Ambient temperature: -20 to +50°C (-4 to +122°F)

International explosion protection certificates, overfill prevention WHG, marine approvals

Funktioner og specifikationer

Tilbage

Details

Measuring principle

Vibration Solids
Characteristic / Application

Switching unit NAMUR technology for rail mounting
SIL2, according 61511
Intrinsically safe
Supply / Communication

NAMUR
24V AC,DC / 230V AC
Ambient temperature

Single installation:
-20 °C ... 60 °C
(-4 °F ... 140 °F)
Rail mounting:
-20 °C ... 50 °C
(-4 °F ... 122 °F)
Communication

1 Channel: 1 level SPDT + 1 alarm SPST
3 Channel: 3 level SPDT + 1 alarm SPST
Certificates / Approvals

ATEX, FM, CSA, IEC Ex, INMETRO NEPSI
Safety approvals

Overfill prevention WHG

SIL

search.tab.more-tabs
Vis mindre

Measuring principle

Vibration Liquids
Characteristic / Application

Switching unit NAMUR technology for rail mounting
SIL2, according 61511
Intrinsically safe
Supply / Communication

NAMUR
24V AC,DC / 230V AC
Ambient temperature

Single installation:
-20 °C ... 60 °C
(-4 °F ... 140 °F)
Rail mounting:
-20 °C ... 50 °C
(-4 °F ... 122 °F)
Communication

1 Channel: 1 level SPDT + 1 alarm SPST
3 Channel: 3 level SPDT + 1 alarm SPST
Certificates / Approvals

ATEX, FM, CSA, IEC Ex, INMETRO, NEPSI, EAC
Safety approvals

Overfill prevention WHG

SIL
