RID16
8 channel field indicator for fieldbuses

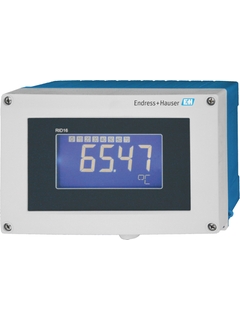

Fieldbus indicator RID16 with FOUNDATION Fieldbus™ or PROFIBUS® PA protocol ©Endress+Hauser

Indication of up to 8 process or calculated values for FOUNDATION Fieldbus™ or PROFIBUS® PA protocol

The 8 channel indicator shows measured and calculated values, and status information of the fieldbus users in a FOUNDATION Fieldbus™ or PROFIBUS® PA network. In the listener mode the device listens to the set fieldbus addresses and indicates their values. In addition, for FOUNDATION Fieldbus™ values available on the bus can be indicated via function block interconnection. A plain text field allows the display of the engineering unit or of the TAG. A bargraph is available for trend visualization.

  • Enkle produkter

  • Nemme at vælge, installere og betjene

Teknisk ydeevne

Enkelhed

  • Standardprodukter

  • Pålidelige og robuste med lav vedligeholdelse

Teknisk ydeevne

Enkelhed

  • Avancerede produkter

  • Funktionelle og praktiske

Teknisk ydeevne

Enkelhed

  • Specialiserede produkter

  • Designet til krævende applikationer

Teknisk ydeevne

Enkelhed

Variabel

FLEX valg Teknisk ydeevne Enkelhed
  • F
  • L
  • E
  • X

Fundamental

Få dækket dine basale målebehov

Teknisk ydeevne
Enkelhed
  • F
  • L
  • E
  • X

Lean

Administrer nemt dine kerneprocesser

Teknisk ydeevne
Enkelhed
  • F
  • L
  • E
  • X

Extended

Optimer dine processer med innovative teknologier

Teknisk ydeevne
Enkelhed
  • F
  • L
  • E
  • X

Xpert

Til de mest udfordrende applikationer

Teknisk ydeevne
Enkelhed

Variabel

  • Oversigt over specifikationer

    • Input

      Foundation Fieldbus protocol
      PROFIBUS PA protocol

    • Output

      Not defined

    • Display

      High contrast backlit LCD with bargraph
      TAG/unit

    • Power Supply

      Not defined

Hurtigvalg

Vælg blandt de foreslåede muligheder
Salgspris
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

eller

Individuel konfiguration

Fortsæt dit valg blandt alle muligheder
  • Fordele

    • Simple and standardized communication via fieldbus protocol

    • Listener mode for up to 8 analog channels or digital status

    • Brilliant, back lit LC display with bargraph, diagnostic symbols and clear text field

    • No external power supply required

    • International...

  • Anvendelsesområde

    Fieldbus indicator with 8 input channels and FOUNDATION Fieldbus™ or PROFIBUS® PA protocol for displaying process values and calculated values.

Details

  • Measuring principle

    Fieldbus indicators

  • Measuring principle

    8 channel field indicator for fieldbuses

  • Function

    Display values

    Advanced diagnostic

  • Display

    High contrast backlit LCD with bargraph

    TAG/unit

  • Power Supply

    Not defined

  • Input

    Foundation Fieldbus protocol

    PROFIBUS PA protocol

  • Output

    Not defined

  • Output

    Not defined

  • Software functions

    Listener Mode

    On Foundation Fieldbus also function block connection:

    Display transducer block

    Advanced diagnostic block

    2 x input selector

    Arithmetic block

    Integrator block

    PID block

  • Certificates

    ATEX Ex ia

    FM

    CSA

    IECEx Ex ia

  • SIL

    Not defined

  • Panel mounting

    field

  • Measuring principle

    Display

  • Function

    Display values

    Advanced diagnostic

  • Certification

    ATEX Ex ia

    FM

    CSA

    IECEx Ex ia

  • Input

    Foundation Fieldbus protocol

    PROFIBUS PA protocol

  • Dimensions (wxhxd)

    Field housing:

    199 x 133 x 96 mm

    (7.83 x 5.24" x 3.78")

  • Software

    Listener Mode


    On Foundation Fieldbus also function block connection:

    Display transducer block

    Advanced diagnostic block

    2 x input selector

    Arithmetic block

    Integrator block

    PID block

  • Operation

    Foundation Fieldbus: via fieldbus

    PROFIBUS PA: DTM and FieldCare or DIP-switches on the device

    Write lock on hardware

  • Display

    High contrast backlit LCD with bargraph

    TAG/unit

  • Operating Voltage

    9-32 V DC, polarity independent
