Oversigt over specifikationer
-
Measurement range
k=0,01: 0-20,0 µS/cm
k=0,1: 0-200,0 µS/cm -
Process temperature
max. 250 °C (482 °F)
-
Process pressure
max. 40 bar (580 psi)
Anvendelsesområde

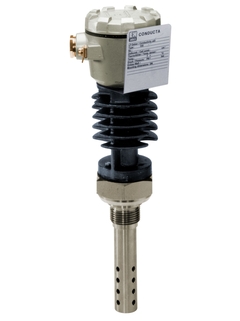

Condumax CLS13 is a robust conductivity sensor for steam/water cycles in power plants. It is optimized for low conductivities (even under very high temperatures and pressures) to protect your processes from deposits and corrosion. Low maintenance and simple to commission (large connection compartment), this is the ideal sensor for tough environments.
Condumax CLS13 measures conductivity in the steam/water cycle in the power & energy industry:
Condensate monitoring
Boiler feedwater monitoring
Boiler blowdown control
The sensor can be used in all low conductivity applications with very high temperatures and pressures.
With its international explosion protection approvals, such as ATEX and FM, the sensor is suitable for hazardous area use.
Fordele
Reliable and accurate measuring values at low conductivities
Optimized for high pressures and temperatures up to 250°C (482°F)
Easy cleaning thanks to stainless steel body and removable outer electrode
Robust design for high durability
Quality certificate stating the individual cell constant
Videoer
Succeshistorier
-
Standardprodukter
- Pålidelige og robuste med lav vedligeholdelse
Teknisk ydeevne
Enkelhed
-
Specialiserede produkter
- Designet til krævende applikationer
Teknisk ydeevne
Enkelhed
Variabel
| FLEX valg | Teknisk ydeevne | Enkelhed |
|---|---|---|
Fundamental Få dækket dine basale målebehov |
Teknisk ydeevne
|
Enkelhed
|
Lean Administrer nemt dine kerneprocesser |
Teknisk ydeevne
|
Enkelhed
|
Extended Optimer dine processer med innovative teknologier |
Teknisk ydeevne
|
Enkelhed
|
Xpert Til de mest udfordrende applikationer |
Teknisk ydeevne
|
Enkelhed
Variabel |
19 dokumenter
-
-
Tekniske oplysninger (TI)
Condumax CLS13
Conductivity sensor for high-temperature applications
EN DA 05/07/202221/02/202201/06/200301/01/2003Sprog:
Engelsk
Version:
05/07/2022
Filstørrelse:
850.6 KB
Filnavn:
TI00083CEN_1422-00.pdf
-
-
-
Betjeningsvejledning (BA)
Condumax CLS12/CLS13 Operating Instructions
Conductivity sensors for high-temperature applications
EN DA 10/10/201731/10/2016Sprog:
Engelsk
Version:
10/10/2017
Filstørrelse:
1 MB
Filnavn:
BA01641CEN_0217.pdf
-
-
-
Installationsanvisninger (EA)
Kit CLS12/CLS13 outer sleeve
For the replacement of the outer sleeve of conductivity sensors
CLS12/CLS13EN DA 01/03/2023Sprog:
Engelsk
Version:
01/03/2023
Filstørrelse:
479.9 KB
Filnavn:
EA01471CEN_0123-00.pdf
-
-
-
Ex-sikkerhedsanvisning (XA)
Condumax CLS12, CLS13
Supplement to: BA01641C
Safety instructions for electrical apparatus in explosion-hazardous
areas
UK II 1G Ex ia IIC T6..T3 Ga (CLS12)
UK II 1G Ex ia IIC T6..T2 Ga (CLS13)Sprog:
Engelsk
Version:
31/12/2021
Filstørrelse:
438.9 KB
Filnavn:
XA02808CEN_0121-00.pdf
-
-
-
Ex-sikkerhedsanvisning (XA)
XA Condumax CLS12, CLS13, CLS15, CLS16B, CLS21
Konduktivitetssensorer med konduktiv måling af konduktivitet
ATEX II 1G Ex ia IIC T6 ... T2 GaEN DA 10/01/202413/12/202101/05/200801/03/2003Sprog:
Dansk
Version:
10/01/2024
Filstørrelse:
499 KB
Filnavn:
XA00083CDA_1423-00.pdf
-
-
-
Ex-sikkerhedsanvisning (XA)
XA Condumax CLS12, CLS13, CLS15, CLS16B, CLS21
Conductivity sensors with conductive measurement of conductivity
NEPSI Ex ia IIC T6 ... T2 GaEN DA 12/04/2024Sprog:
Engelsk
Version:
12/04/2024
Filstørrelse:
602.6 KB
Filnavn:
XA03295CEN_0124-00.pdf
-
-
-
Kompetencebrochure (CP)
Leitfähigkeitsmessung in Industrieprozessen
Auswahl- und Engineeringhilfe für verschiedene Industrien und
AnwendungenSprog:
Tysk
Version:
27/04/2023
Filstørrelse:
2.4 MB
Filnavn:
CP01313CDE_0223_LF_Auswahlhilfe_web.pdf
-
-
-
Kompetencebrochure (CP)
産業プロセスにおける導電率の測定
さまざまな産業およびアプリケーション向けの選択およびエンジニアリングガイド
Sprog:
Japansk
Version:
12/01/2024
Filstørrelse:
6.3 MB
Filnavn:
CP01313CJA_0223.pdf
-
-
-
Kompetencebrochure (CP)
Conductivity measurement in industrial processes
Selection and engineering guide for different industries and
applicationsSprog:
Engelsk
Version:
27/04/2023
Filstørrelse:
2.5 MB
Filnavn:
CP01313CEN_0223_cond_selection_guide_web.pdf
-
-
-
EU-erklæring
Product family: ConduMax H, ConduMax W
Product root: CLS12-, CLS13-, CLS15-, CLS16-, CLS21-
Declaration number: EC_00317_02.16EN DA 01/06/2017Sprog:
Engelsk
Version:
01/06/2017
Filstørrelse:
295.2 KB
Filnavn:
EC_00317_02.16.pdf
-
