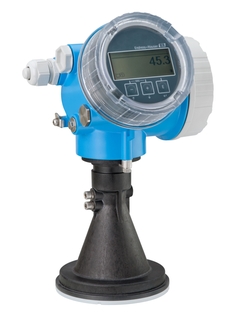

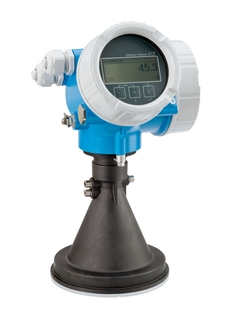

Name: Micropilot FMR56
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Predecessor

Micropilot M FMR244

Prosonic S FDU96

Successor

F

L

E

X
Micropilot FMR66B

Highest performance in every application
Discover more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Measuring principle

Level radar solid
Characteristic / Application

For simple applications:
Reliable non-contact level measurements in silos or storage tanks for bulk solids
Specialities

Heartbeat Technology,
Bluetooth® commissioning,
Operation and maintenance SmartBlue App,
Safety and reliability with Multi- Echo Tracking,
HistoROM,
RFID TAG for easy identification,
Supply / Communication

2-wire (HART/ PROFIBUS PA/ FOUNDATION Fieldbus)
4-wire (HART)
Bluetooth® wireless technology and App (optional)
Frequency

K-band (~26 GHz)
Antenna

Horn DN80/3", PP plated
Horn DN100/4", PP plated
Accuracy

+/- 3 mm (0.12 in)
Ambient temperature

-40 °C...+80 °C
(-40 °F...+176 °F)
Process temperature

-40 °C...+80 °C
(-40 °F...+176 °F)
Process pressure / max. overpressure limit

Vacuum...3 bar
(Vacuum...43.5 psi)
Main wetted parts

PP, UP
Process connection

Flange:
UNI DN80...DN150
(3"...6")
Mounting bracket
Max. measurement distance

30 m (98 ft)
Communication

4...20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus
Bluetooth® wireless technology
Certificates / Approvals

ATEX, FM, CSA C/US, IEC Ex, INMETRO, NEPSI, EAC Ex, KC, UK Ex
Safety approvals

SIL
Options

Display,
Customized parameterization
Remote operation via SmartBlue App using Bluetooth®
Application limits

DK < 1.6
Reduction of the max. possible measuring range through:
Media with poor reflection properties
Angle of repose
Extremely loose surfaces of bulk solids, e.g. bulk solids with low bulk weight for pneumatic filling
Build-up, above all of moist products

Filter

Search spare parts by number in drawing

- Show drawing (PDF)

60 spare parts & accessories

Housing filter Brass/Ni GT19/20, 1 set

Filter

Drawing number

Order code

19

71115175
Set housing securing clamps

Housing/housing accessories

Drawing number

Order code

17

71115176
Cover GT19 PBT, EPDM

Cover

Drawing number

Order code

20

71110293
Cover GT19 PBT, sight glass, EPDM

Cover

Drawing number

Order code

20

71110292
Cover GT20 Alu, sight glass, HNBR

Cover

Drawing number

Order code

20

71110297
Cover GT20 Alu, HNBR

Cover

Drawing number

Order code

20

71110299
Cover GT19 PBT, Terminal Ex, EPDM

Cover

Drawing number

Order code

25

71110295
Cover GT19 PBT, Terminal, OVP, EPDM

Cover

Drawing number

Order code

25

71185518
Cover GT20 Alu, Terminal Ex, HNBR

Cover

Drawing number

Order code

25

71110301
Cover GT20 Alu, Terminal, OVP, HNBR

Cover

Drawing number

Order code

25

71185517
Cover GT20 Alu, Terminal Ex d, HNBR

Cover

Drawing number

Order code

25

71110302
Sealing set GT18/GT19/GT20, EPDM, HNBR

Sealing

Drawing number

Order code

65

71110303
Plug M12, IP66/68 NEMA4X/6P, ProToF

further parts

Order code

71450381
Electronics Micropilot FMR5x

Electronic

Drawing number

Order code

30

XPF0020-
Electronics Micropilot FMR5x

Electronic

Drawing number

Order code

30

XPF0020-
Electronics Micropilot FMR5x

Electronic

Drawing number

Order code

30

XPF0020-
Electronics Micropilot FMR5x

Electronic

Drawing number

Order code

30

XPF0020-
Electronics Micropilot FMR5x

Electronic

Drawing number

Order code

30

XPF0020-
Electronics Micropilot FMR5x

Electronic

Drawing number

Order code

30

XPF0020-
Electronics Micropilot FMR5x

Electronic

Drawing number

Order code

30

XPF0020-
I/O mod.Level,2-wr.4-20mA,HART,Ex,LP,V2

I/O module

Drawing number

Order code

34

71187812
I/O module 2-wire, 4-20mA, HART, Ex, V2

I/O module

Drawing number

Order code

34

71108594
I/O module, 2-wr.,4-20mA,HART,PFS,Ex,V1

I/O module

Drawing number

Order code

34

71108599
I/O mod. Level, 2-wr.2x4-20mA,HART,Ex,V2

I/O module

Drawing number

Order code

34

71207474
I/O mod. Level,4-wr.DC,4-20mA,HART,Ex,V2

I/O module

Drawing number

Order code

34

71207473
I/O mod. Level,4-wr.AC,4-20mA,HART,Ex,V2

I/O module

Drawing number

Order code

34

71207475
I/O module, 2-wire, PA/FF, PFS, Ex, V2

I/O module

Drawing number

Order code

34

71164940
Terminal set 4-wire, I/O module

Terminals

Drawing number

Order code

37

71110279
Terminal set 2-wire, I/O module

Terminals

Drawing number

Order code

37

71110280
Display module, SD02, push buttons

further parts

Drawing number

Order code

40

XPD0024-
Display module, SD03, Touch Control

further parts

Drawing number

Order code

40

XPD0025-
Cable FHX50, FHX50B, 5m

further parts

Order code

71206552
Cable FHX50, FHX50B, 10m

further parts

Order code

71206554
Cable FHX50, FHX50B, 20m

further parts

Order code

71206555
Cable FHX50, FHX50B, 30m

further parts

Order code

71206556
Transmitter electronics FHX50

further parts

Order code

71197334
Spare parts set - retrofit kit FHX50

further parts

Order code

71248380
Spare RFID TAG

further parts

Order code

XPRFID-
Overvoltage protection (OVP10),1-Channel

Order code

71128617
Overvoltage protection (OVP20),2-Channel

Order code

71128619
Weather prot. cover GT18/GT19/GT20, 316L

Order code

71162242
UNI slip on flange 3"/DN80/80, PP

Order code

71162777
UNI slip on flange 4"/DN100/100, PP

Order code

71162778
UNI slip on flange 6"/DN150/150, PP

Order code

71162780
UNI slip on fl. 4"/DN100/100, horn 100mm

Order code

71162781
UNI slip on fl. 6"/DN150/150, horn 100mm

Order code

71162782
Bluetooth module (BT10)

Order code

71377355
Seal, adjustable, DN80

Order code

71074263
Seal, adjustable, DN100

Order code

71074264
Seal, adjustable, DN150

Order code

71074265
Seal, adjustable, ASME 3"/ JIS 80A

Order code

71249070
Seal, adjustable, ASME 4"

Order code

71249072
Seal, adjustable, ASME 6"/ JIS 150A

Order code

71249073
Mounting bracket, FMR50/56

Order code

71162776
