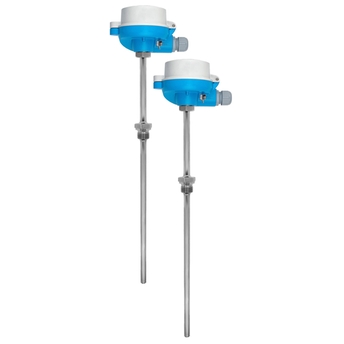

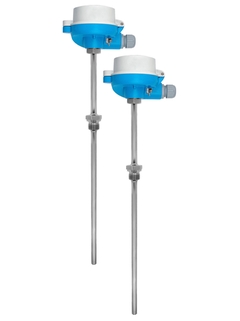

Product picture of resistance thermometer TST90

iTHERM ModuLine TST90
Industrial modular thermometer

Paired set of metric RTD thermometers for thermal energy measurements

TST90
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
TST90 Modular RTD thermometer
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    +/- 0.05 K (refering to delta-T)

  • Response time

    depending on configuration
    t50 = 10 s
    t90 = 31 s

  • Max. process pressure (static)

    at 20 °C: 50 bar (725 psi)

  • Operating temperature range

    PT 100:
    -50 °C …400 °C
    (-58 °F …752 °F)

  • Max. immersion length on request

    up to 4.000,00 mm (157,48'')

Field of application

The thermometer is mainly used in the chemical industry but also finds its use in other branches. The device is used for high-precision measurement of temperature
differences with matched sensor pairs. A variety of dimensions offers flexible application possibilities.

  • Universally usable for thermal energy measurements

  • Measuring range: -50 to +400 °C (-58 to +752 °F)

  • Paired in the range: 0 to +120 °C (+32 to +248 °F), Deviation of the sensors: ± 0.05 K

  • Paired in the range: –40 to 0 °C (-40 to 32 °F), Deviation of the sensors: ± 0.1 K

  • Protection class: up to IP68

Benefits

  • Fast replaceability of the insert

  • High degree of insert compatibility and design as per DIN 43772

  • Fast response time with reduced tip
