Oversigt over specifikationer
-
Measurement range
pH 0 to 14
-
Process temperature
0 to 140 °C (32 to 284 °F)
-
Process pressure
1 to 14 bar (15 to 203 psi)
Anvendelsesområde

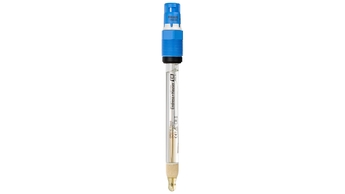

Ceragel CPS71D is the digital specialist for demanding processes and hygienic applications. Its contamination-resistant gel guarantees stable measurement even in flowing media or low conductivity. The sensor measures reliably at high temperatures and is non-toxic assuring highest safety. Ceragel CPS71D is not the latest Memosens generation. To get information on the new Memosens sensors with extended functionality, click CPS71E for chemical applications and CPS61E for hygienic applications.
Process technology and monitoring of processes with:
- Quickly changing pH values
- High proportion of electrode poisons such as H2SChemical industry
Hygienic and sterile applications:
- Fermenters
- Biotechnology
- Life sciences
With ATEX, FM, and CSA approval for application in hazardous areas
Fordele
Sensor resists strong acids and bases and high organic loads
Suitable for CIP/SIP and autoclaving maintaining high accuracy
Free from animal-based materials and from acrylamide
Maximum process safety through non-contact inductive signal transmission
Enables predictive maintenance due to storage of sensor and process-specific data
Reduced operating costs thanks to minimized process downtime and extended sensor lifetime
Videoer

-
Standardprodukter
- Pålidelige og robuste med lav vedligeholdelse
Teknisk ydeevne
Enkelhed
-
Specialiserede produkter
- Designet til krævende applikationer
Teknisk ydeevne
Enkelhed
Variabel
FLEX valg | Teknisk ydeevne | Enkelhed |
---|---|---|
Fundamental Få dækket dine basale målebehov |
Teknisk ydeevne
|
Enkelhed
|
Lean Administrer nemt dine kerneprocesser |
Teknisk ydeevne
|
Enkelhed
|
Extended Optimer dine processer med innovative teknologier |
Teknisk ydeevne
|
Enkelhed
|
Xpert Til de mest udfordrende applikationer |
Teknisk ydeevne
|
Enkelhed
Variabel |
-
-
Teknisk information (TI)
Ceragel CPS71D and CPS71 Technical Information
pH single-rod measuring cells, analog or with digital Memosens technology
EN DA 14/09/201519/12/201201/10/200501/03/200401/09/2002Sprog:
Engelsk
Version:
14/09/2015
Filstørrelse:
457.9 KB
Filnavn:
TI00245CEN_1515.pdf
-
-
-
Betjeningsvejledining (BA)
pH-/ORP-sensorer og referencehalvceller
Sensorer med Memosens-teknologi og analoge sensorer
EN DA 04/05/202031/12/201730/11/2015Sprog:
Dansk
Version:
04/05/2020
Filstørrelse:
1.1 MB
Filnavn:
BA01572CDA_0320.pdf
-
-
-
Ex Sikkerheds Brugsanvisning (XA)
Memosens pH/ORP Sicherheitshinweise für elektrische Betriebsmittel im explosionsgefährdeten Bereich Safetyinstructions for electrical apparatus for explosion-hazardous areas Conseils de sécurité pour matériels électriques destinés aux zones explosibles Safety Instructions
Safety instructions for electrical apparatus for explosion-hazardous areas
EN DA 11/11/201631/12/201101/04/2009Sprog:
Engelsk
Version:
11/11/2016
Filstørrelse:
3.7 MB
Filnavn:
XA00079CA3_1416.pdf
-
-
-
Ex Sikkerheds Brugsanvisning (XA)
Memosens pH/ORP Sicherheitshinweise für elektrische Betriebsmittel im explosionsgefährdeten Bereich Safetyinstructions for electrical apparatus for explosion-hazardous areas Conseils de sécurité pour matériels électriques destinés aux zones explosibles Safety Instructions
Safety instructions for electrical apparatus for explosion-hazardous areas
EN DA 22/02/201604/03/201514/01/201321/10/201001/12/2006Sprog:
Engelsk
Version:
22/02/2016
Filstørrelse:
4.3 MB
Filnavn:
XA00376CA3_1616.pdf
-
-
-
Ex Sikkerheds Brugsanvisning (XA)
Memosens ph/ORP sensors
pH/ORP measurement Supplement to BA01572C, BA01109C Safety instructions for electrical apparatus in explosion-hazardous areas UKEx II 1 G Ex ia IIC T3/T4/T6 Ga UK Ex II 1 G Ex ia IIC T4/T6 Ga
Sprog:
Engelsk
Version:
08/12/2021
Filstørrelse:
435.2 KB
Filnavn:
XA02786CEN_0121-00.pdf
-
-
-
Ex Sikkerheds Brugsanvisning (XA)
Memosens pH/ORP sensors
pH and ORP measurement Supplement to: BA01572C, BA01109C Safety instructions for electrical equipment in explosion-hazardous areas EAC Ex 0Ex ia IIC T3/T4/T6 Ga X EAC Ex 0Ex iaIIC T4/T6 Ga X
EN DA 01/03/202218/02/202108/03/2016Sprog:
Engelsk
Version:
01/03/2022
Filstørrelse:
508.1 KB
Filnavn:
XA01437CEN_0322-00.pdf
-
-
-
Special Dokumentation (SD)
Hygienic applications
Equipment for liquid analysis
EN DA 30/04/2021Sprog:
Engelsk
Version:
30/04/2021
Filstørrelse:
515.3 KB
Filnavn:
SD02751CEN_0121.pdf
-
-
-
Special Dokumentation (SD)
Memoclip
Äußere Kennzeichnung von digitalen Sensoren und Kabeln mit Memosens-Technologie
EN DA 01/03/2007Sprog:
Engelsk
Version:
01/03/2007
Filstørrelse:
284.4 KB
Filnavn:
SD124Ca2.pdf
-
-
-
Special Dokumentation (SD)
Kurzanleitung pH-/Redox-Sensoren - Short Instructions pH/ORP sensors
pH-/Redox-Sensoren - pH/ORP sensors
EN DA 01/04/200701/09/1999Sprog:
Engelsk
Version:
01/04/2007
Filstørrelse:
361.7 KB
Filnavn:
SD050Ca2.pdf
-
-
-
Aktivitetsområder (FA)
Jistota v analýze kapalin
Od senzorů po kompletní dodávku na klíč
Sprog:
Tjekkisk
Version:
12/01/2017
Filstørrelse:
740.3 KB
Filnavn:
Analyza_FA01018Ccs_0216.pdf
-
