Flowmåling til væsker, gasarter og damp

Kategorier

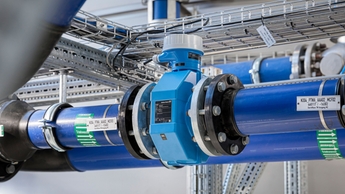

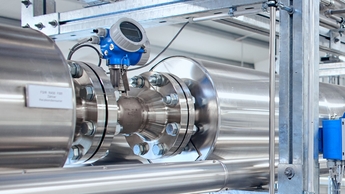

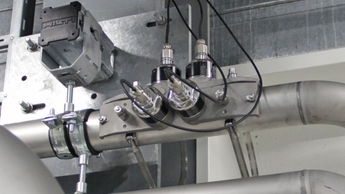

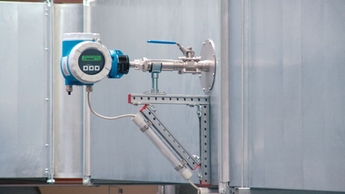

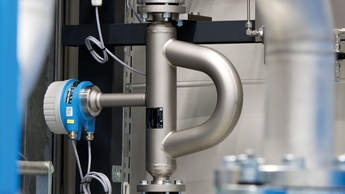

Magnetiske flowmålere Coriolis-masseflowmålere Ultralydsflowmålere Vortex flowmålere Termiske masseflowmålere Flowmåling med differenstryk

Picture of Electromagnetic flowmeter Proline Promag P 300 / 5P3B for process applications

Enkle produkter
Nemme at vælge, installere og betjene

Teknisk ydeevne

Enkelhed

Hvad er FLEX?

Standardprodukter
Pålidelige og robuste med lav vedligeholdelse

Teknisk ydeevne

Enkelhed

Hvad er FLEX?

Avancerede produkter
Funktionelle og praktiske

Teknisk ydeevne

Enkelhed

Hvad er FLEX?

Specialiserede produkter
Designet til krævende applikationer

Teknisk ydeevne

Enkelhed

Variabel

Hvad er FLEX?

FLEX valg	Teknisk ydeevne	Enkelhed
F L E X Fundamental Få dækket dine basale målebehov	Teknisk ydeevne	Enkelhed
F L E X Lean Administrer nemt dine kerneprocesser	Teknisk ydeevne	Enkelhed
F L E X Extended Optimer dine processer med innovative teknologier	Teknisk ydeevne	Enkelhed
F L E X Xpert Til de mest udfordrende applikationer	Teknisk ydeevne	Enkelhed Variabel

Lær mere om FLEX

Sammenlign

Proline Promag P 300 electromagnetic flowmeter

High-temperature flowmeter for process applications with a compact, easily accessible transmitter

Max. measurement error Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec

Measuring range 4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)

Medium temperature range Liner material PFA: –20 to +150 °C (–4 to +302 °F)
Liner material PFA high-temperature: –20 to +180 °C (–4 to +356 °F)
Liner material PTFE: –40 to +130 °C (–40 to +266 °F)

Max. process pressure PN 40, Class 300, 20K

Wetted materials Liner: PFA; PTFE
Electrodes: 1.4435 (F316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium

Coriolis flowmeter - Proline Promass F 300

Sammenlign

Proline Promass F 300 Coriolis flowmeter

Flowmeter with premium accuracy, robustness and a compact, easily accessible transmitter

Max. measurement error Mass flow (liquid): ±0.10 % (standard), 0.05 % (option)
Volume flow (liquid): ±0.10 %
Mass flow (gas): ±0.25 %
Density (liquid): ±0.0005 g/cm³

Measuring range 0 to 2 200 000 kg/h (0 to 80 840 lb/min)

Medium temperature range Standard: –50 to +150 °C (–58…+302 °F)
Option: –50 to +240 °C (–58…+464 °F)
High temperatur option: –50 to +350 °C (–58…+662 °F)
Option: –196 to +150 °C (–320 to +302 °F)

Max. process pressure PN 100, Class 600, 63K

Wetted materials Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022); 1.4301 (F304)

Product picture of Proline Promass U 500

Sammenlign

Proline Promass U 500 Coriolis flowmeter

First single-use flowmeter for biotech applications with premium performance, cGMP compliance, and up to 4 I/Os

Max. measurement error Mass flow (liquid): ±0.5%

Measuring range 0 to 75 kg/h (0 to 165,3 lb/min)

Medium temperature range 3 to 60°C (37.4 to 140°F)

Max. process pressure 6 bar (87 psi)

Wetted materials Measuring tubes: Stainless steel 1.4435, 316L
Hose connection nipple: Makrolon Rx 1805 polycarbonate

Picture of ultrasonic flowmeter Proline Prosonic Flow P 500 / 9P5B

Sammenlign

Proline Prosonic Flow P 500 ultrasonic clamp-on flowmeter

Reliable, flexible, zero maintenance – noninvasive flow measurement, consistently accurate, even under challenging conditions

Max. measurement error Volume flow:
±3% o.r. for DN 15
±2% o.r. for DN 25 to DN 200
±2% o.r. above DN 200

Measuring range 0 to 15 m/s (0 to 50 ft/s)

Medium temperature range DN 15 to 65 (½to 2½"): –40 to +150°C (–40 +302 °F)
DN 50 to 4000 (2 to 160"): –40 to +170°C (–40 to +338 °F)
DN 50 to 600 (2" to 24"): 150°C to 550°C (+302 to +1022 °F)

Max. process pressure N/A

product picture of the ultrasonic flowmeter FLOWSIC600-XT

New

Sammenlign

FLOWSIC600-XT ultrasonic flowmeter

Custody transfer natural gas measurement with intelligent diagnostic functions

Measured variables Volumetric flow a. c., volume a. c., gas velocity, Speed of sound, optional volume correction via integrated, electronic volume corrector (EVC)

Measuring Medium Natural gas (with up to 30% hydrogen), air, natural gases containing increased levels of CO2, N2, H2S, O2, H2

Nominal pipe size 3 ″ ... 56 ″
(DN 80 ... DN 1400), other nominal pipe sizes on request

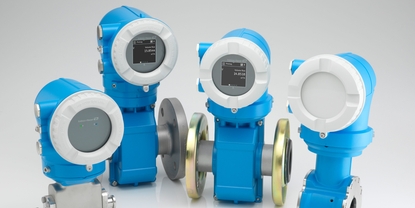

Picture of flowmeter Proline Promag H 100 / 5H1B (DN ≥ 40 / 1 1/2") for hygienic applications

Sammenlign

Proline Promag H 100 electromagnetic flowmeter

The specialist for hygienic applications with an ultra-compact transmitter

Max. measurement error Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Volume flow (option) ±0.2 % o.r. ± 2 mm/s (0.08 in/s)

Measuring range 0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min)

Medium temperature range –20 to +150 °C (–4 to +302 °F)

Max. process pressure PN 40, Class 150, 20K

Wetted materials Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum
Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve
Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)
Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum

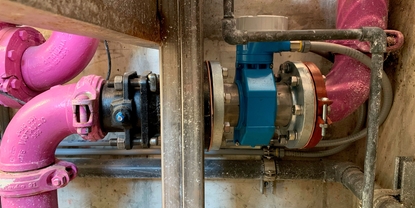

Picture of Electromagnetic flowmeter Proline Promag W 300 / 5W3B for the water & wastewater industry

Sammenlign

Proline Promag W 300 electromagnetic flowmeter

Specialist for demanding water and wastewater applications with a compact, easily accessible transmitter

Max. measurement error Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec

Measuring range 0.5 m3/h to 263000 m3/h (2.5gal/min to 1665 Mgal/d)

Medium temperature range Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
Liner material PTFE: –20 to +90 °C (–4 to +194 °F)

Max. process pressure PN 40, Class 300, 20K

Wetted materials Liner: Polyurethane; Hard rubber, PTFE
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum

Picture of Electromagnetic flowmeter Proline Promag W 400 / 5W4C for the water & wastewater industry

Sammenlign

Proline Promag W 400 electromagnetic flowmeter

Versatile standard flowmeter for the water and wastewater industry

Max. measurement error Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)
Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s), Flat Spec

Measuring range 0.5 m3/h to 263000 m3/h (2.5gal/min to 1665 Mgal/d)

Max. process pressure PN 40, Class 300, 20K

Wetted materials Liner material hard rubber: 0 to +80 °C (+32 to +176 °F)
Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
Liner material PTFE: –20 to +90 °C (–4 to +194 °F)
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum

Proline t-mass F 300 – Inline version with flange connection

Sammenlign

Proline t-mass F 300 thermal mass flowmeter

Inline flowmeter with long-term stability and a compact, easily accessible transmitter

Max. measurement error Gas: 1.0% o.r. (10 to 100% o.f.s.), 0.1% o.f.s. (1 to 10% o.f.s.)

Measuring range 0.5 to 3750 kg/h (1.1 to 8250 lb/h)

Medium temperature range -40 °C to +180°C (-40 °F to +356 °F)

Max. process pressure PN40 / Cl. 300 / 20K

Wetted materials Measuring tubes
DN 15 to 50 (½ to 2"): stainless cast steel, CF3M/1.4408
DN 65 to 100 (2½ to 4"): stainless steel, 1.4404 (316/316L)
Process connections
Flange connections
Stainless steel, 1.4404 (F316/F316L)
Threaded connections
Stainless steel, 1.4404 (316/316L)
Sensing element
Unidirectional
Stainless steel, 1.4404 (316/316L)
Alloy C22, 2.4602 (UNS N06022);
Bidirectional
Stainless steel, 1.4404 (316/316L)
Reverse flow detection
Stainless steel, 1.4404 (316/316L)

Picture of Vortex flowmeter Proline Prowirl F 200 / 7F2C for utilities

Sammenlign

Proline Prowirl F 200 vortex flowmeter

Versatile flowmeter with detection of wet steam conditions and best-in-class accuracy

Max. measurement error Volume flow (liquid): ±0.75 %
Volume flow (optional): ±0.65 %
Volume flow (steam, gas): ±1.00 %
Mass flow (saturated steam): ±1.7% (temperature compensated); ±1.5% (temperature/pressure compensated)
Mass flow (superheated steam, gas): ±1.5 (temperature/pressure compensated); ±1.7% (temperature compensated + external pressure compensation)
Mass flow (liquid): ±0.85%

Measuring range Liquid: 0.2 to 2100 m³/h (0.15 to 1520 ft³/min)
depending on medium: water with 1 bar a, 20 °C (14.5 psi a, 68° F)
Steam, gas: 1.5 to 28000 m³/h (0.9 to 16600 ft³/min)
depending on medium: steam with 180 °C, 10 bar a (356 °F, 145 psi a); air with 25 °C, 4.4 bar a (77 °F, 63.8 psi a)

Medium temperature range Standard: –40 to +260 °C (–40 to +500 °F)
High/low temperature (option): –200 to +400 °C (–328 to +752 °F)

Max. process pressure PN 100, Class 600, 20K

Wetted materials Measuring tube: 1.4408 (CF3M); CX2MW similar to Alloy C22, 2.4602

Har du brug for hjælp til at vælge og dimensionere din næste enhed?

Vælg, dimensioner og konfigurer nemt de bedst egnede produkter til dine måleopgaver og applikationer.

Gå til Applicator

About Flowmåling til væsker, gasarter og damp

Ensartet produktkvalitet, sikkerhed, procesoptimering og miljøbeskyttelse – disse er blot nogle få årsager til, at industriel flowmåling stadig bliver mere vigtig. Vand, naturgas, damp, mineralolie og kemikalier er nogle af de væsker, som skal måles konstant. Der findes ikke én enkelt generel teknologi, som egner sig til alle disse opgaver, så du kan vælge den flowmåler, som passer bedst til dine procesbehov, i vores omfattende produktsortiment.

Fordele

Fra det kommunikationskompatible enkeltmålepunkt til den komplette løsning beregnet til mere avancerede kontrolsystemer kan du altid regne med, at vi tilpasser vores produkter til din virksomheds procesbehov.
Sammen med automatiseret proceskontrol og topmoderne kommunikationsinterfaces (fieldbus-systemer) er flowmåling i de seneste år blevet mere og mere almindeligt inden for nye anvendelsesområder.
Du kan vælge mellem forskellige måleprincipper - elektromagnetisk måling af strømningsmængde, masseflow baseret på enten Coriolis-princippet eller termoprincippet, måling af strømningsmængde baseret på vortex- eller ultralydsprincippet.
Vi er parat til at hjælpe dig med at finde det rigtige produkt - se vores kontaktoplysninger her.
