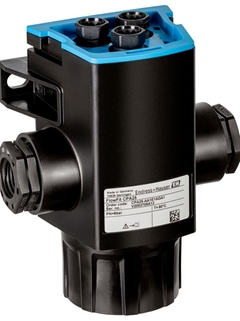

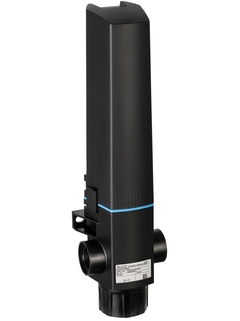

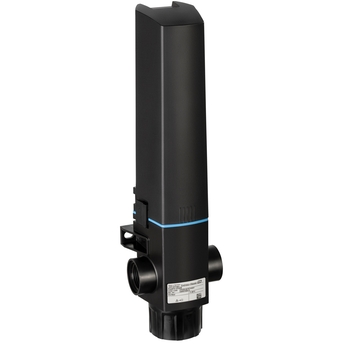

Flowfit CPA25 - Flow assembly with splash protection cap

Flow assembly
Flowfit CPA25

Universal assembly for the water and wastewater industry and industrial auxiliary processes.

CPA25

Sammenligne

Flowfit CPA25 Universal assembly for the water and wastewater industry

Flowfit CPA25 assembly with three Pg 13.5 sensor slots.

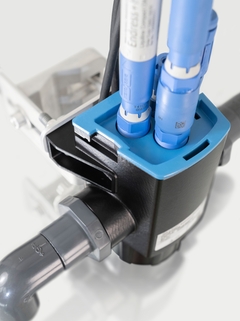

Flowfit CPA25 - Flow assembly with compact transmitter and pH sensor

Oversigt over specifikationer

Process temperature

0 to 80°C
(32 to 176°F)
Process pressure

max. 6 bar at 20°C
(87 psi at 68°F)

Se alle specifikationer

Anvendelsesområde

The Flowfit CPA25 flow assembly is designed for the realization of measuring points in water and wastewater treatment and industrial auxiliary processes. It offers space for three sensors and is able to extend their service life by keeping them wet even when the flow is interrupted. The assembly itself is also durable thanks to corrosion-resistant polypropylene. With Flowfit you get the right product exactly for your standard applications.

Flowfit CPA25 can be used in many applications in industrial auxiliary processes as well as in water and wastewater treatment. It is intended to be used in the following applications among others:

Drinking water
Water and wastewater treatment
Water cooling circuits
Osmosis plants

It is suitable for use with pressures of up to 6 bar.

Fordele

Compact assembly with three Pg 13.5 sensor slots.
Special flow geometry to achieve reliable and stable
measured values from the installed sensors.
Siphon type profile to protect the sensors from drying out
during plant shutdown.
Service cover facilitates cleaning of the sensors and
assembly.
Calibration of the sensors to check they are functioning
correctly can take place while installed.
