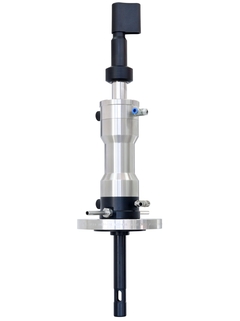

Manual or automatic retractable assembly Cleanfit CPA472D

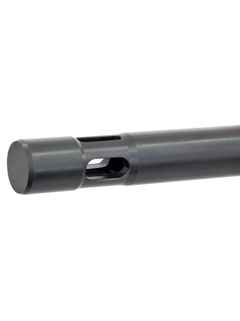

Cleanfit CPA472D - Retractable assembly for harsh process conditions

Cleanfit CPA472D with sight glass assembly

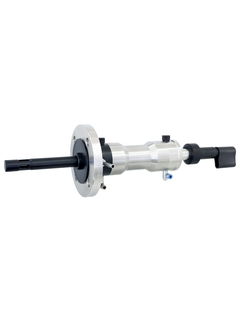

Cleanfit CPA472D assembly for harsh process conditions

Heavy-duty assembly for chemical and power industries

The Cleanfit CPA472D assembly is designed for harsh process conditions. It offers a great variety of rugged materials to operate your sensors safely even under high pressure, high temperature or in aggressive media. The assembly allows you to replace sensors without interrupting the process or to clean and calibrate them automatically via the optional control system. Benefit from easy, time-saving sensor handling and an extended operating life of the sensors.

Føj til indkøbskurv
Konfigurér
Dimensionering
Prisoplysninger efter login og konfiguration

Sammenligne

Fordele
Extremely robust: Suitable for use with pressures of up to 10 bar and temperatures of up to 140° C even as PEEK, PVDF, conductive PVDF versions
Maximum chemical resistance ensures long operating times
No process interruption for electrode cleaning and...

Vis mere
Extremely robust: Suitable for use with pressures of up to 10 bar and temperatures of up to 140° C even as PEEK, PVDF, conductive PVDF versions
Maximum chemical resistance ensures long operating times
No process interruption for electrode cleaning and calibration – saves maintenance time and costs
Flexible adaptation to all applications by great variety of materials and process connections

Vis mindre

Anvendelsesområde
The Cleanfit CPA472D is intended for installation in tanks or pipes in:

Chemical industry

Power plants

Biodiesel plants

It is suitable for use with pressures of up to 10 bar.

Funktioner og specifikationer

Tilbage

Details

Measuring principle

Sensor ORP / Redox
Application

Chemical industry, biodiesel plants, power plants, plant design, tanks, process vats or pipes
Installation

Retractable holder
Characteristic

For tanks and process vats and pipelines or pipes (min. DN80)
The robust retractable assembly permits replacement of the electrode while the tank is full or under process conditions with pressures of up to 6 bar
Design

Manual or pneumatical
Material

Electrode holder, rinse chamber and raised face:
PEEK, PVDF, conductive PVDF, Alloy C22, stainless steel 1.4571
Seals: EPDM, FPM (Viton) or FFKM (Kalrez®)
Dimension

Immersion depth: 146 or 280 mm (5.75 or 7.87 inch)
Process temperature

0 to 140 °C (32 to 284 °F)
Process pressure

0 to max. 4 bar (0 to max. 58 psi) overpressure for manual actuation
0 to 10 bar (0 to 145 psi) overpressure for pneumatic actuation
Connection

Process connections: Flange DN 50, DN 80, ANSI 2", JIS IS10K50A, internal thread G1¼

Vis mere
Vis mindre

Measuring principle

Glass electrode
Application

Chemical industry, biodiesel plants, power plants, plant design, tanks, process vats or pipes
Installation

Retractable holder
Characteristic

For tanks and process vats and pipelines or pipes (min. DN80)
The robust retractable assembly permits replacement of the electrode while the tank is full or under process conditions with pressures of up to 6 bar
Design

Manual or pneumatical
Material

Electrode holder, rinse chamber and raised face:
PEEK, PVDF, conductive PVDF, Alloy C22, stainless steel 1.4571
Seals: EPDM, FPM (Viton) or FFKM (Kalrez®)
Dimension

Immersion depth: 146 or 280 mm (5.75 or 7.87 inch)
Process temperature

0 to 140 °C (32 to 284 °F)
Process pressure

0 to max. 4 bar (0 to max. 58 psi) overpressure for manual actuation
0 to 10 bar (0 to 145 psi) overpressure for pneumatic actuation
Connection

Process connections: Flange DN 50, DN 80, ANSI 2", JIS IS10K50A, internal thread G1¼

Vis mere
Vis mindre

Dokumenter / Vejledninger / Software

Downloadtype

Technical Information Topcal S CPC310
Fully automatic measuring, cleaning and calibration system in hazardous
and non-hazardous areas

Technical Information (TI)
Technical Information Cleanfit P CPA472D
Retractable process assembly for pH, ORP and other industry electrodes
Heavy duty version

Technical Information (TI)
Operating Instructions Cleanfit CPA472D
Retractable Process Assembly

Operating Instruction (BA)
Heavy Duty Wechselarmatur für pH-Prozesse erfolgreich gestartet
Nach erfolgreichen Installationen in Anlagen der rheinischen Chemiewerke
von Bayer und Lanxess führt Endress+Hauser jetzt die neueWechselarmatur
Cleanfit CPA472D als standardisierte Heavy Duty Linie in den Markt ein.

Publications (PU)

03/07

Tysk
Successful launch of retractable assembly for heavy-duty pH processes
Following its successful installation in the Rhine-based chemical plants
of Bayer and Lanxess, Endress+Hauser is now introducing its new Cleanfit
CPA472D retractable assembly to the market as a standardized heavy-duty
range.

Publications (PU)

03/07

us
pH 測定セレクションガイド
産業プロセスにおける pH 測定

Competence Brochure (CP)

08/15

Japansk
CP00010C pH measurement in industrial processes for US market
Selection and engineering guide for your industry and application

Competence Brochure (CP)

04/15

Engelsk
Measurement and control aspect of pH using inductively coupled with bidirectional Memosens technology in flue gas desulfurization process
White Paper CP971C pH measurement and control in a power utility is an
integral part of process. The scrubber efficiency is highlydependent on
the pH. Numerous opportunities were revealed for saving time, as well as
the cost and materials in power plants. In afossil fuel power plant,
the
chemical energy stored in coal, oil, natural gas, shale oil, oxygen and
air
is converted into thermal, mechanical and finally into electrical
energy. In
other words, water is heated to steam, which spins a steam turbine. The
steam turbine drives an electrical generator.

Competence Brochure (CP)

04/11

Engelsk
CP01202C pH Sensors:Calibrate, clean, perform a calibration check or...?
This white paper will address
Knowing when to do a pH sensor calibration versus a calibration
check
How to properly clean a pH sensor
How to perform a pH sensor calibration
A decision tree for step by step guidance

Competence Brochure (CP)

02/12

Engelsk
Prozessautomatisierung, die Gold wert ist
Memosens pH-Sensoren verbessern Prozesse bei Agnico Eagle

Case Studies (CS)

07/16

Tysk
L’automatisation des process vaut son pesant d’or
Memosens Les sondes de pH améliorent les process chez Agnico Eagle

Case Studies (CS)

07/16

fr
Process automation worth its weight in gold
Memosens pH sensors improve processes at Agnico Eagle

Case Studies (CS)

07/16

Engelsk
Heavy-duty retractable assembly for demanding pH applications
For the chemical industry, energy production and biodiesel: Measurement,
online cleaning and replacement of electrodes, particularly those with
Memosens technology.

Innovations (IN)

03/07

us
Heavy-Duty-Wechselarmatur für anspruchsvolle Anforderungen
Für anspruchsvolle Anforderungen
für Chemieindustrie, Energieerzeugung und Biodiesel: Messen,
Online-Reinigen und -Wechseln von Elektroden
insbesondere mit Memosens Technologie.

Innovations (IN)

03/07

Tysk
CleanFit, CleanFit P, FlowFit W
Product Code: CCA250-, COA451-, CPA450-, CPA471-, CPA472-, CPA472D-, CPA473-, CPA474-, CPA871-, CPA875-
Region/Country: Russia (Declaration of Conformity)
Approval Number: EAEC_N_D-DE.NA10.B.0145718

Miscellaneous

Russisk
CleanFit, CleanFit H, CleanFit P, FlowFit W
Product Code: CUA451-, CPA875-, CPA871-, CPA475-, CPA474-, CPA473-, CPA472D-, CPA472-, CPA471-, CPA450-, COA451-, CCA250-
Region/Country: Russia (TR CU)
Approval Agency: EAC
Approval Number: TC № RU D-DE.AL32.B.02544

Miscellaneous

Russisk

Vis mere
Vis mindre

Tilbehør / Reservedele

???Vis som PDF???

Søg

Filtrer

Order code

Specification

- Order code 71217188

  Manual Kits CPA472D 2013

  Vis detaljer Gem detaljer
- Order code 71297785

  Manual CPA472D Retrofit

  Vis detaljer Gem detaljer
10
- Nr 10 Order code 71211749

  CPA472D Sealing set inside flange Kalrez

  Vis detaljer Gem detaljer
- Nr 10 Order code 71211751

  CPA472D seal set flange inside Viton

  Vis detaljer Gem detaljer
- Nr 10 Order code 71211752

  CPA472D Seal set flange inside EPDM

  Vis detaljer Gem detaljer
- Nr 10 Order code 71211736

  CPA472D seal set G1 1/4" inside EPDM

  Vis detaljer Gem detaljer
- Nr 10 Order code 71211745

  CPA472D seal set G1 1/4" inside Viton

  Vis detaljer Gem detaljer
- Nr 10 Order code 71211748

  CPA472D seal set G1 1/4 inside Kalrez

  Vis detaljer Gem detaljer
- Nr 10 Order code 71024242

  CPA472D seals flange Viton mediumcont.

  Corrosion-resistant o-rings for CPA472D, outside sealed; Viton, FPM

  Vis detaljer Gem detaljer
- Nr 10 Order code 71027299

  Sealings set CPA472D Viton

  for G1 1/4" adapter

  Vis detaljer Gem detaljer
- Nr 10 Order code 71024247

  CPA472D Seals flange Kalrez mediumcont.

  Corrosion-resistant o-rings for CPA472D,Outside sealed,Perfluorlast; Kalrez

  Vis detaljer Gem detaljer
- Nr 10 Order code 71027302

  Sealings set CPA472D Kalrez

  for G1 1/4" adapter

  Vis detaljer Gem detaljer
- Nr 10 Order code 71043257

  CPA472D Seals flange EPDM mediumcont.

  Vis detaljer Gem detaljer
- Nr 10 Order code 71043259

  Sealings set EPDM for CPA472D G1 1/4"

  Vis detaljer Gem detaljer
6
- Nr 6 Order code 71024454

  CPA472D seals not medium cont.

  For armatur CPA472...

  Vis detaljer Gem detaljer
10
- Nr 10 Order code 71090063

  Kit CPA472/D: 20 pcs. O-ring ID14 W3 FPM

  Vis detaljer Gem detaljer
- Nr 10 Order code 71090065

  Kit CPA472/D: 2 pcs.O-ring ID14W3 KALREZ

  Vis detaljer Gem detaljer
9
- Nr 9 Order code 71214026

  Kit CPA472D Rinse chamber, IN, 316Ti,G,G

  for internal process sealing with rinsing connection G1/4" for process connection G1 1/4"

  Vis detaljer Gem detaljer
- Nr 9 Order code 71214033

  Kit CPA472D Rinse chamber, IN, Alloy,G,G

  for internal process sealing with rinsing connection G1/4" for process connection G1 1/4"

  Vis detaljer Gem detaljer
- Nr 9 Order code 71214227

  Kit CPA472D Rinse chamber, IN, 316Ti,G,N

  for internal process sealing with rinsing connection NPT1/4" for process connection G1 1/4"

  Vis detaljer Gem detaljer
- Nr 9 Order code 71214228

  Kit CPA472D Rinse chamber, IN, Alloy,G,N

  for internal process sealing with rinsing connection NPT1/4" for process connection G1 1/4"

  Vis detaljer Gem detaljer
20
- Nr 20 Order code 71214230

  Kit CPA472D Rinse chamber, IN, PEEK, F,G

  for internal process sealing with rinsing connection G1/4" for flange process connections

  Vis detaljer Gem detaljer
- Nr 20 Order code 71214232

  Kit CPA472D Rinse chamber, IN, PVDF,F,G

  for internal process sealing with rinsing connection G1/4" for flange process connections

  Vis detaljer Gem detaljer
- Nr 20 Order code 71214233

  Kit CPA472D Rinse chamber, IN,PVDF-C,F,G

  for internal process sealing with rinsing connection G1/4" for flange process connections

  Vis detaljer Gem detaljer
- Nr 20 Order code 71214234

  Kit CPA472D Rinse chamber, IN, 316Ti,F,G

  for internal process sealing with rinsing connection G1/4" for flange process connections

  Vis detaljer Gem detaljer
- Nr 20 Order code 71214235

  Kit CPA472D Rinse chamber, IN, Alloy,F,G

  for internal process sealing with rinsing connection G1/4" for flange process connections

  Vis detaljer Gem detaljer
7
- Nr 7 Order code 71214236

  Kit CPA472D long, 361Ti, D18-I: Sensorg

  sensor guide with piston,without gaskets for metal rinse chamber for internal process sealing

  Vis detaljer Gem detaljer
- Nr 7 Order code 71214237

  Kit CPA472D long, Alloy, D18-I: Sensorg

  sensor guide with piston,without gaskets for metal rinse chamber for internal process sealing

  Vis detaljer Gem detaljer
- Nr 7 Order code 71214238

  Kit CPA472D short, 361Ti, D18-I: Sensorg

  sensor guide with piston,without gaskets for metal rinse chamber for internal process sealing

  Vis detaljer Gem detaljer
- Nr 7 Order code 71214239

  Kit CPA472D short, Alloy, D18-I: Sensorg

  sensor guide with piston,without gaskets for metal rinse chamber for internal process sealing

  Vis detaljer Gem detaljer
- Nr 7 Order code 71214240

  Kit CPA472D long, 316Ti, D25-I: Sensorg

  sensor guide with piston,without gaskets for plastic rinse chamber for internal process sealing

  Vis detaljer Gem detaljer
- Nr 7 Order code 71214242

  Kit CPA472D long, Alloy, D25-I: Sensorg

  sensor guide with piston,without gaskets for plastic rinse chamber for internal process sealing

  Vis detaljer Gem detaljer
- Nr 7 Order code 71214243

  Kit CPA472D short, 361Ti, D25-I: Sensorg

  sensor guide with piston,without gaskets for plastic rinse chamber for internal process sealing

  Vis detaljer Gem detaljer
- Nr 7 Order code 71214244

  Kit CPA472D short, Alloy, D25-I: Sensorg

  sensor guide with piston,without gaskets for plastic rinse chamber for internal process sealing

  Vis detaljer Gem detaljer
- Nr 7 Order code 71214245

  Kit CPA472D long, PEEK, D25-I: Sensorg

  sensor guide with piston,without gaskets for plastic rinse chamber for internal process sealing

  Vis detaljer Gem detaljer
- Nr 7 Order code 71214246

  Kit CPA472D short, PEEK, D25-I: Sensorg

  sensor guide with piston,without gaskets for plastic rinse chamber for internal process sealing

  Vis detaljer Gem detaljer
- Nr 7 Order code 71214247

  Kit CPA472D long, PVDF, D25-I: Sensorg

  sensor guide with piston,without gaskets for plastic rinse chamber for internal process sealing

  Vis detaljer Gem detaljer
- Nr 7 Order code 71214248

  Kit CPA472D short, PVDF, D25-I: Sensorg

  sensor guide with piston,without gaskets for plastic rinse chamber for internal process sealing

  Vis detaljer Gem detaljer
- Nr 7 Order code 71214249

  Kit CPA472D long, PVDF-C, D25-I: Sensorg

  sensor guide with piston,without gaskets for plastic rinse chamber for internal process sealing

  Vis detaljer Gem detaljer
- Nr 7 Order code 71214250

  Kit CPA472D short,PVDF-C, D25-I: Sensorg

  sensor guide with piston,without gaskets for plastic rinse chamber for internal process sealing

  Vis detaljer Gem detaljer
1
- Nr 1 Order code 71026649

  KIT CPA472D man.long Gel:retract.pipe

  .

  Vis detaljer Gem detaljer
- Nr 1 Order code 71026651

  KIT CPA472D long pneum. Gel: retr. pipe

  .

  Vis detaljer Gem detaljer
- Nr 1 Order code 71026652

  KIT CPA472D short hand Gel: retr. pipe

  .

  Vis detaljer Gem detaljer
- Nr 1 Order code 71026653

  KIT CPA472D short pneum. Gel: retr. pipe

  .

  Vis detaljer Gem detaljer
16
- Nr 16 Order code 71102512

  Kit CPA472D KCI-pipe manual

  Vis detaljer Gem detaljer
- Nr 16 Order code 71102513

  Kit CPA472D KCi-pipe pneumatic

  Vis detaljer Gem detaljer
5
- Nr 5 Order code 71026656

  KIT CPA472D long: Cylinder 1.4404 w.head

  Vis detaljer Gem detaljer
19
- Nr 19 Order code 71026658

  KIT CPA472D short: Cylinder1.4404 w.head

  Vis detaljer Gem detaljer
23
- Nr 23 Order code 71026774

  KIT CPA472D with flange: flange DN50

  Vis detaljer Gem detaljer
- Nr 23 Order code 71026776

  KIT CPA472D with flange: flange ANSI 2"

  Vis detaljer Gem detaljer
22
- Nr 22 Order code 71026766

  KIT 472D DN50+ANSI 2", PEEK: raised face

  Vis detaljer Gem detaljer
- Nr 22 Order code 71026767

  KIT 472D DN50+ANSI 2", PVDF: raised face

  Vis detaljer Gem detaljer
- Nr 22 Order code 71026768

  KIT 472D DN50+ANSI 2"PVDF-c: raised face

  Vis detaljer Gem detaljer
- Nr 22 Order code 71026770

  KIT 472D DN50+ANSI 2", HC4: raised face

  Vis detaljer Gem detaljer
- Nr 22 Order code 71026771

  KIT 472D DN50+ANSI 2",Titan: raised face

  Vis detaljer Gem detaljer
- Nr 22 Order code 71026772

  KIT 472D DN50+ANSI 2",1.4571:raised face

  Vis detaljer Gem detaljer
23
- Nr 23 Order code 71026775

  KIT CPA472D with flange: flange DN80

  Vis detaljer Gem detaljer
22
- Nr 22 Order code 71026781

  KIT CPA472D DN80 PEEK: raised face

  Vis detaljer Gem detaljer
- Nr 22 Order code 71026783

  KIT CPA472D DN80 PVDF: raised face

  Vis detaljer Gem detaljer
- Nr 22 Order code 71026784

  KIT CPA472D DN80 PVDF-cond: raised face

  Vis detaljer Gem detaljer
- Nr 22 Order code 71026785

  KIT 472D DN80 HC4: raised face

  Vis detaljer Gem detaljer
- Nr 22 Order code 71026786

  KIT CPA472D DN80 Titan:raised face

  Vis detaljer Gem detaljer
- Nr 22 Order code 71026787

  KIT CPA472D DN80 1.4571: raised face

  Vis detaljer Gem detaljer
23
- Nr 23 Order code 71085857

  KIT CPA472D with flange: JIS flange

  Vis detaljer Gem detaljer
22
- Nr 22 Order code 71085850

  KIT 472D JIS flange, PEEk: raised face

  Vis detaljer Gem detaljer
- Nr 22 Order code 71085851

  KIT 472D JIS flange, PVDF: raised face

  Vis detaljer Gem detaljer
- Nr 22 Order code 71085852

  KIT 472D JIS flange, PVDF-C: raised face

  Vis detaljer Gem detaljer
- Nr 22 Order code 71085854

  KIT 472D JIS flange, HC4: raised face

  Vis detaljer Gem detaljer
- Nr 22 Order code 71085855

  KIT 472D JIS flange,Titanium:raised face

  Vis detaljer Gem detaljer
- Nr 22 Order code 71085856

  KIT 472D JIS flange, 316TI: raised face

  Vis detaljer Gem detaljer
18
- Nr 18 Order code 71103282

  Kit CPA472D/473: 20retaining washer

  Vis detaljer Gem detaljer
21
- Nr 21 Order code 71026794

  KIT 472D HC4, G1/4": Swagelok rinse conn

  Vis detaljer Gem detaljer
- Nr 21 Order code 71026795

  KIT 472D Titan G1/4: Swagelok rinse conn

  Vis detaljer Gem detaljer
- Nr 21 Order code 71026796

  KIT 472D 1.4571 G1/4: Swagelok rinse con

  Vis detaljer Gem detaljer
2.8
- Nr 2.8 Order code 51503732

  KIT CPA47x airflow throttle+dummyplug SS

  Vis detaljer Gem detaljer
2
- Nr 2 Order code 71329949

  KIT CPA47X: Throttel check valve

  Vis detaljer Gem detaljer
3
- Nr 3 Order code 71027935

  KIT CPA: elbow conn. R1/8 OD6 SS 2 pcs.

  Vis detaljer Gem detaljer
11
- Nr 11 Order code 51503733

  KIT CPA47x: sealing plug M12x1 (10 pcs.)

  Vis detaljer Gem detaljer
4
- Nr 4 Order code 51503731

  KIT CPA47x:stop bolt with handle (1 pc.)

  Vis detaljer Gem detaljer
15
- Nr 15 Order code 71026789

  KIT CPA472D: cyl. screw M6x70 20 pcs.

  Vis detaljer Gem detaljer
17
- Nr 17 Order code 51503738

  KIT CPA471/472 cyl. screw M6x45 20 pcs.

  Vis detaljer Gem detaljer
24
- Nr 24 Order code 50062732

  Splash guard cover small process assembl

  Alte Material-Nummer: 126330

  Vis detaljer Gem detaljer
25
- Nr 25 Order code 51517522

  Splash protection cap for assemblies

  Vis detaljer Gem detaljer
26
- Nr 26 Order code 51518182

  Protective pipe short f.process assembly

  Vis detaljer Gem detaljer
28
- Nr 28 Order code 51518208

  hose support f. Ø6 und Ø8 KCL hose

  Vis detaljer Gem detaljer
27
- Nr 27 Order code 50080430

  Protective sleeve wide for KCl-electrode

  Vis detaljer Gem detaljer
12
- Nr 12 Order code 51502874

  Pneum. proxim. switches f.retrofitting

  Vis detaljer Gem detaljer
13
- Nr 13 Order code 51502873

  KIT CPA47x electr. proxim.switches

  Vis detaljer Gem detaljer
- Order code 51515653

  Flow vessel DN50 PFA-lined, sight glass

  Corrosion-resistant PFA-lined;antistatic 3-way sight-glass, DN50 PN16, 230 mm., chemically resistant housing with sight for a retractable and for optimal mounting of rectractable in pipes DN50 and monotoring of sensor in measurement

  Vis detaljer Gem detaljer
- Order code 51500328

  Built-in adapt. straight, Size25, 1.4404

  Design length 40 mm

  Vis detaljer Gem detaljer
- Order code 51500327

  Built-in adapter oblique,Size 25, 1.4404

  Design length 40/49mm

  Vis detaljer Gem detaljer
- Order code 71098682

  flange- welding socket DN50,PN16

  Vis detaljer Gem detaljer
- Order code 51502800

  Dummy plug 316L, G 1 1/4 inch internal

  27 mm, useable for all welding adapter G 11/4 inch

  Vis detaljer Gem detaljer
- Order code 50092264

  Locking screw G1/4 inch GL8mm

  Vis detaljer Gem detaljer
- Order code 50090491

  Hose connection set PVDF, G 1/4"-DN 12

  for porge chamber for CPA450

  Vis detaljer Gem detaljer
- Order code 51503730

  KIT CPA47x pneu.connection G1/8 AD6 10p

  Vis detaljer Gem detaljer
