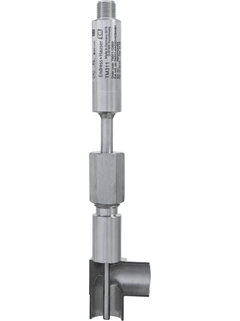

iTHERM CompactLine TM311

Pt100 compact thermometer, with optional integrated IO-Link and 4–20 mA transmitter, programmable PC

The compact thermometer measures the process temperature using a Pt100 sensor element (Class A, 4-wire). An optional integrated transmitter converts the Pt100 input signal. In the version with integrated electronics, the device automatically detects the connection variant (IO-Link or 4–20 mA).

Dimensionering
Prisoplysninger efter login og konfiguration

Sammenligne

Hurtigvalg

Vælg blandt de foreslåede muligheder

<%label%>
-- selected coding

-- selected label
<%label%>
Leder du efter flere indstillinger? Anvend denindividuelle konfiguratorfor at fortsætte.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Leder du efter flere indstillinger? Anvend denindividuelle konfiguratorfor at fortsætte.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Valgfrie tilføjelser

Anvend denindividuelle konfiguratorfor at fortsætte.

eller

Individuel konfiguration

Fortsæt dit valg blandt alle muligheder

Konfigurér

Yderligere komponenter

RIA15
Loop-powered indicator for 4 to 20 mA or HART signals

For the indication of the 4 to 20 mA signal or the HART® values in the field or in the panel!
Yderligere information
Sammenligne
RN221N
Active barrier with optional HART® diagnosis

Active barrier with power supply for safe separation of 4...20 mA current circuits
Yderligere information
Sammenligne
FieldPort SFP20

USB modem for the configuration of IO-Link devices
Yderligere information
Sammenligne
RIA16
Loop-powered indicator

Excellently readable indication of 4…20 mA signal with trend bar graph for a better process overview
Yderligere information
Sammenligne
RNS221
Transmitter supply for DIN rail

Power supply for two 2 wire sensors or transmitters
Yderligere information
Sammenligne

Fordele
Fast installation and easy commissioning:
- Small, compact design made entirely from stainless steel
- M12 connection with IP69 for easy electrical connection
- Pt100, 4-wire connection or universal output (IO-Link / 4–20 mA)
- Preset measuring range
...

Vis mere
Fast installation and easy commissioning:
- Small, compact design made entirely from stainless steel
- M12 connection with IP69 for easy electrical connection
- Pt100, 4-wire connection or universal output (IO-Link / 4–20 mA)
- Preset measuring range
Excellent metrological properties thanks to innovative sensor technology:
- Extremely short response times
- High level of measuring accuracy even with short immersion lengths
- Improved measuring accuracy with transmitter-sensor matching
Reliable operation ensured by approvals and certificates:
- Device safety to EN610101-1 and CSA C/US
- Electromagnetic compatibility to NAMUR NE21
- Diagnostics information to NAMUR NE43
- Hygiene-compliant design with 3-A marking
- Marine approval

Vis mindre

Anvendelsesområde
Developed for universal use in hygienic and aseptic applications in the food, beverage and pharmaceutical industries, as well as for optimum standardization for machine and plant manufacturers
Measuring range: -50 to +200 °C (-58 to +392 °F)
Pressure...

Vis mere
Developed for universal use in hygienic and aseptic applications in the food, beverage and pharmaceutical industries, as well as for optimum standardization for machine and plant manufacturers
Measuring range: -50 to +200 °C (-58 to +392 °F)
Pressure range: Up to 50 bar (725 psi)
Protection class: IP69
Output
Without electronics: Pt100 (4-wire connection)
With electronics: IO-Link, 4–20 mA, 1 x PNP switch output (depending on the connection type)

Vis mindre

Funktioner og specifikationer

Tilbage

Details

Measuring principle

Resistance Temperature Detector
Characteristic / Application

metric and imperial style

compact temperature probe

fast response time

high accuracy

standard and hygienic design

hygienic process connection

threaded process connection
Thermowell / protection tube

without

incl. thermowell

incl. T-/ellbow thermowell
Insert / probe

pipe version, isolated wires, not flexible
Outer diameter protection tube / Insert

3,0 mm (0,12'')

6,0 mm (0,24'')
Max. immersion length on request

up to 600,00 mm (23,62'')
Material protection tube/ thermowell

1.4435 Delta-Ferrit < 1%

316L
Process connection

compression fitting

Thread

weld in adapter

clamp connections acc. to ISO2852

screwed pipe joint acc. to DIN 11851

aseptic screwed pipe joint acc. to DIN 11864-1

metallic sealing system

thread acc. to ISO 228 for liquiphant adaptor

Varivent

SMS 1147

T- and elbow pieces
Tip shape

straight

reduced
Surface roughness Ra

0,76 μm (29,92 μin)

0,38 μm (14,96 μin)

0,38 μm (14,96 μin) electropolished
Operating temperature range

PT 100:

-50 °C ...200 °C

(-58 °F ...392 °F)
Max. process pressure (static)

at 20 °C: 50 bar (725 psi)
Accuracy

class A acc. to IEC 60751
Response time

t50 = 1 s

t90 = 2 s
Integration head transmitter

no (4…20mA Signal, IO-Link)
Certification

3A, EHEDG, ASME BPE, FDA, TSE

1935/2004, 2023/2006, 10/2011

DNVGL, BV

cCSAus

EAC

RCM

Vis mere
Vis mindre

Dokumenter / Vejledninger / Software

Downloadtype

Filtrer

iTHERM CompactLine TM311
Compact thermometer, Pt100, 4-wire connection, class A
Optionally with integrated IO-Link and 4 to 20 mA transmitter, PC
programmable

Technical Information (TI)
iTHERM CompactLine TM311
Compact thermometer with IO-Link

Operating Instruction (BA)
iTHERM CompactLine TM311
Compact thermometer with IO-Link

Short Instruction (KA)

06/20

Engelsk
Misura della temperatura e componenti di sistema per i settori alimentare e farmaceutico.
Misura della temperatura e componenti di sistema per i settori
alimentare e
farmaceutico.
La nuova frontiera dell'igiene: un'offerta complete per applicazioni
igieniche e asettiche

Publications (PU)

01/20

Italiensk
IODD Single, IODD_IOL_TE_iTHERM_0x93FF_0x01_V01_00_01, 17.03.2020 (Temperature, iTHERM, 0x93FF)
IO-Link,

DTM Configtool with Turck BL20-E-GWEN Version: 3.2.8.0

IODD DTM Configurator Version: 3.08.00

IO Device Description (IODD)

01.00.01

Language neutral
ACCESSORIES: PIPE THERMOWELL, Magphant, Process RTD Hygienic, RTD-thermometer
Product Code: TTR35-, TT412-, TT411-, TMR35-, TM412-, TM411-, TM402-, TM401-, TM372-, TM371-, TM311-, TK40-, DTT35-
Declaration Number: HE_00099_04.15
Manufacturer Specification: Food hygiene, 10/2011, 1935/2004

Manufacturer Declaration

Tysk , Engelsk
RTD-thermometer
Product Code: TM311-
Declaration Number: HE_01181_01.19

Manufacturer Declaration

Tysk , Engelsk
RTD-thermometer
Product Code: TM311-
Declaration Number: HE_01249_01.20
Manufacturer Specification: RoHS

Manufacturer Declaration

Kinesisk
ACCESSORIES: PIPE THERMOWELL, Magphant, Process RTD Hygienic, RTD-thermometer
Product Code: TTR35-, TT412-, TT411-, TMR35-, TM412-, TM411-, TM402-, TM401-, TM372-, TM371-, TM311-, TK40-, DTT35-
Declaration Number: HE_01097_01.19
Manufacturer Specification: Food hygiene

Manufacturer Declaration

Engelsk
ACCESSORIES: PIPE THERMOWELL, Magphant, Process RTD Hygienic, RTD-thermometer
Product Code: TTR35-, TT412-, TT411-, TMR35-, TM412-, TM411-, TM402-, TM401-, TM372-, TM371-, TM311-, TK40-, DTT35-
Declaration Number: FDA_00127_03.17

FDA Declaration

Tysk , Engelsk
ACCESSORIES: PIPE THERMOWELL, Magphant, Process RTD Hygienic, RTD-thermometer
Product Code: TTR35-, TT412-, TT411-, TMR35-, TM412-, TM411-, TM402-, TM401-, TM372-, TM371-, TM311-, TK40-, DTT35-
Region/Country: Europe
Approval Agency: TU München

Hygienic Equipment

Engelsk
ACCESSORIES: PIPE THERMOWELL, Magphant, Process RTD Hygienic, RTD-thermometer
Product Code: TTR35-, TT412-, TT411-, TMR35-, TM412-, TM411-, TM402-, TM401-, TM372-, TM371-, TM311-, TK40-, TE411-, DTT35-
Region/Country: Canada, USA
Approval Agency: 3-A Sanitary Standards

Hygienic Equipment

Engelsk
RTD-thermometer
Product Code: TM311-
Region/Country: International
Approval Agency: DNVGL

Marine

Engelsk
RTD-thermometer
Product Code: TM311-
Region/Country: Canada, USA
Approval Agency: CSA

Ordinary Location Product Safety

Engelsk

Vis mere
Vis mindre

Tilbehør / Reservedele

Søg

Filtrer

Order code

Specification

- Order code

  The unit is not repairable

  Vis detaljer Gem detaljer
- Order code 51004751

  Collar welding boss d6 PEEK + screw

  moveable with sealing taper, washer + pressure screw G1/2, material of wetted parts: 316L, PEEK, max. Prozessdruck: 10 bar (145 psi)

  Vis detaljer Gem detaljer
- Order code 51004752

  Collar welding boss d6 PEEK w/o screw

  moveable with sealing taper + washer, material of wetted parts: 316L, PEEK, max. process pressure: 10 bar (145 psi)

  Vis detaljer Gem detaljer
- Order code 60022519

  plug screw fitting G1/2 1.4435

  Vis detaljer Gem detaljer
- Order code 71405560

  Weld in adapter M12x1.5 1.4435/316L

  Vis detaljer Gem detaljer
- Order code 71424800

  G1/2 metal to metal weld in adapter

  for connection with G1/2" female thread. Material 316L/1.4435. 2x leakage bore.

  Vis detaljer Gem detaljer
- Order code 52018765

  Weld-in adapter G3/4 d=50, 316L, 3.1

  Flush mount process connection Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51, FTI51, FTL20/FTL20H, FTL31/FTL33, FTW23/FTW33, QMW43, 11371. Usage: TMR35.

  Vis detaljer Gem detaljer
- Order code 52028295

  Weld-in adapter G3/4, d=29, 316L, 3.1

  Flush mount process connection. For pipe-mounting. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTW23/FTW33, QMW43.

  Vis detaljer Gem detaljer
- Order code 52021717

  O-ring 14.9x2.7 VMQ, FDA, 5 pcs.

  Material: silicone VMQ 75. Usage: Weld-in adapter G3/4, 316L, (71258355) vesselmounting, (71258357) pipe-mounting, flush mount, FTL31/FTL33, FTW23/FTW33, QMW43, Weld-in adapter G3/4, 316L, 3.1, (52018765) vesselmounting, (52028295) pipe-mounting, flush mount, FMI51, FTI51, FTL31/FTL33, FTW23/FTW33, QMW43.

  Vis detaljer Gem detaljer
- Order code 52001052

  Weld-in adapter G3/4, d=55, 316L

  Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FTL50/FTL50H, FTL80, QMW43. Usage: TMR35.

  Vis detaljer Gem detaljer
- Order code 52011897

  Weld-in adapter G3/4, 316L, 3.1

  Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FTL50/FTL50H, FTL80, QMW43. Usage: TMR35.

  Vis detaljer Gem detaljer
- Order code 52014473

  O-ring 21.89x2.62 VMQ, FDA, 5 pcs.

  Material: silicone VMQ 70. Usage: weld-in adapter G3/4, 316L (52001052) flush mount, 316L, 3.1 (52011897) flush mount, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81.

  Vis detaljer Gem detaljer
- Order code 71093129

  Weld-in adapter G1, d=53, 316L, 3.1

  Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material Seal: silicone O-ring FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35, QMW43.

  Vis detaljer Gem detaljer
- Order code 52001051

  Weld-in adapter G1, d=60, 316L

  Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35, QMW43. Usage: TM401/TM411, TMR35.

  Vis detaljer Gem detaljer
- Order code 52011896

  Weld-in adapter G1, d=60, 316L, 3.1

  Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, EHEDG, 3-A compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35, QMW43. Usage: TM401/TM411, TMR35.

  Vis detaljer Gem detaljer
- Order code 52014472

  O-ring 28.17x3.53 VMQ, FDA, 5 pcs.

  Material: silicone VMQ 70. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

  Vis detaljer Gem detaljer
- Order code 52001221

  Weld-in adapter G1, adjustable, 316L

  Flush mount process connection. Material: 316L. Liquiphant is adjustable. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL80/FTL81, FTL330H/330L.

  Vis detaljer Gem detaljer
- Order code 52011898

  Weld-in adapter G1, adjustable,316L, 3.1

  Flush mount process connection. Material: 316L. Liquiphant is adjustable. Inspection cert. EN10204-3.1 material. Seal: silicone profile gasket. FDA, EHEDG, 3-A compliant. Usage: FTL20/FTL20H, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL31/FTL33, FTL80/FTL81, FTL330H/FTL330L.

  Vis detaljer Gem detaljer
- Order code 52014424

  Profile gasket 29x36x3.7, FDA, 5 pcs.

  Material: silicone VMQ. Usage: Process connect. G1 flush mount, Weld-in adapter G1, 316L, adjustable (52001221), Weld-in adapter G1, 316L, 3.1, adjustable (52011898), FTL31/FTL33, FTL80/FTL81, FTL50/FTL50H/FTL51/FTL51H, Weld-in adapter Rd52, 316L, adjustable, (52001047), 316L, 3.1, adjustable, (52006909), FTL33, FTL50/FTL50H/FTL51/FTL51H, QMW43.

  Vis detaljer Gem detaljer
- Order code 71449142

  Adapter cable, PIN, TM311 to TMR3x

  Vis detaljer Gem detaljer
- Order code 71217708

  Cordset 4p D18 IP69K

  PVC cable, 4 x 0.34 mm2 (22 AWG) with M12x1 coupling nut from stainless steel; straight female connector type; screw plug; length 5 m (16.4 ft); IP69K.

  Vis detaljer Gem detaljer
- Order code TK40-

  iTHERM TK40 Compression Fitting

  Weld-in compression fitting with hygienic design. For applications in the food/ beverages and pharmaceutical industries.

  Vis detaljer Gem detaljer
