RIA14
Loop-powered field indicator

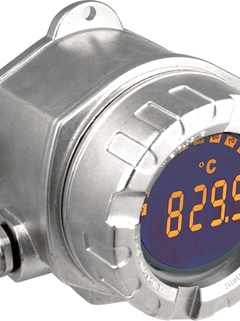

Loop-powered process indicator RIA14 for field installation

Excellent readable indication of a 4…20 mA signal on-site for a better process overview!

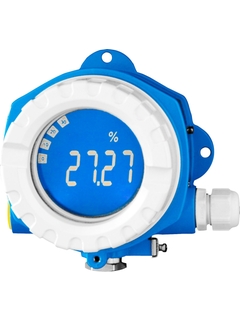

The indicator shows the measured signal on the large, backlit display. An additional bar graph gives a quick process overview and a plain text field displays further information like the engineering unit or TAG. Limit value infringements are also signalized and an open collector can be switched. No separate power supply is required, the indicator is powered directly from the 4...20 mA loop. The housing is available in aluminum and in stainless steel as well as with an optional Ex d approval.

Fundamental

Enkle produkter
Nemme at vælge, installere og betjene

Teknisk ydeevne

Enkelhed

Hvad er FLEX?

Standardprodukter
Pålidelige og robuste med lav vedligeholdelse

Teknisk ydeevne

Enkelhed

Hvad er FLEX?

Avancerede produkter
Funktionelle og praktiske

Teknisk ydeevne

Enkelhed

Hvad er FLEX?

Specialiserede produkter
Designet til krævende applikationer

Teknisk ydeevne

Enkelhed

Variabel

Hvad er FLEX?

FLEX valg	Teknisk ydeevne	Enkelhed
F L E X Fundamental Få dækket dine basale målebehov	Teknisk ydeevne	Enkelhed
F L E X Lean Administrer nemt dine kerneprocesser	Teknisk ydeevne	Enkelhed
F L E X Extended Optimer dine processer med innovative teknologier	Teknisk ydeevne	Enkelhed
F L E X Xpert Til de mest udfordrende applikationer	Teknisk ydeevne	Enkelhed Variabel

Lær mere om FLEX

Dimensionering

Sammenligne

Oversigt over specifikationer
Input

1 x analogue 4...20 mA

Output

1 x open collector

Output

1 x open collector

Display

LCD 20 mm (0.79")
5-digit
Bargraph
Plain text display

Power Supply

Loop powered

Loading alternative products

Hurtigvalg

Vælg blandt de foreslåede muligheder

Salgspris

<%label%>
-- selected coding

-- selected label

99.999,00
<%label%>
Leder du efter flere indstillinger? Anvend den individuelle konfigurator for at fortsætte.
<%feature%>
-- selected coding

-- selected label

99.999,00
<%feature%>
<%coding%>

<%label%>

99.999,00

Leder du efter flere indstillinger? Anvend den individuelle konfigurator for at fortsætte.
Process Connection
<%coding%>

<%label%>

99.999,00

<%coding%>

<%label%>

99.999,00

<%message%>

RIA14

Vis detaljer Skjul detaljer

Vis detaljer

Tilbage til Hurtigvalg

<%feature%>

<%coding%>

<%label%>

Føj til indkøbskurv

Valgfrie tilføjelser

Anvend den individuelle konfigurator for at fortsætte.

eller

Individuel konfiguration

Fortsæt dit valg blandt alle muligheder

Konfigurér

Yderligere komponenter

RN221N
Active barrier with optional HART® diagnosis

Active barrier with power supply for safe separation of 4...20 mA current circuits
Yderligere information
Sammenligne
Indlæser pris

Priser er midlertidigt utilgængelige

Pris efter login

from CHF 803.-
F

L

E

X
RMA42
Process transmitter with control unit

Universal transmitter, loop power supply, barrier and limit switch in one device!
Yderligere information
Sammenligne
Indlæser pris

Priser er midlertidigt utilgængelige

Pris efter login

from CHF 803.-
F

L

E

X
RIA15
Loop-powered indicator for 4 to 20 mA or HART signals

For the indication of the 4 to 20 mA signal or the HART® values in the field or in the panel!
Yderligere information
Sammenligne
Indlæser pris

Priser er midlertidigt utilgængelige

Pris efter login

from CHF 803.-
F

L

E

X
RIA45
Process meter with control unit

Multifunctional panel mounted process meter for monitoring and indication of analog measured values
Yderligere information
Sammenligne
Indlæser pris

Priser er midlertidigt utilgængelige

Pris efter login

from CHF 803.-
F

L

E

X
HAW569
Surge arresters

Surge arresters for field mounting
Yderligere information
Sammenligne
Indlæser pris

Priser er midlertidigt utilgængelige

Pris efter login

from CHF 803.-

Fordele
Display of 4 to 20 mA measured values
5-digit measured value display with dimension, bar graph and backlight
No external power supply required
Versions: Die-cast aluminum housing or stainless steel housing
Easy 3-key operation; or configuration with...

Vis mere
Display of 4 to 20 mA measured values
5-digit measured value display with dimension, bar graph and backlight
No external power supply required
Versions: Die-cast aluminum housing or stainless steel housing
Easy 3-key operation; or configuration with FieldCare PC software; or configuration without power supply using setup box
International approvals; marine approval
Allows the HART^® transmission protocol to pass unimpeded

Vis mindre

Anvendelsesområde
Microcontroller controlled display unit in single chamber field housing with illuminated LC display. The measuring range, decimal point and offset of the display can be configured comfortably by means of three keys in the device with the housing open...

Vis mere
Microcontroller controlled display unit in single chamber field housing with illuminated LC display. The measuring range, decimal point and offset of the display can be configured comfortably by means of three keys in the device with the housing open or by means of a PC with the FieldCare PC software.

Vis mindre

Funktioner og specifikationer

Tilbage

Details

Measuring principle

Loop powered indicators
Measuring principle

Loop-powered field indicator
Function

Display
Display

LCD 20 mm (0.79")

5-digit

Bargraph

Plain text display
Power Supply

Loop powered
Input

1 x analogue 4...20 mA
Output

1 x open collector
Output

1 x open collector
Software functions

Not defined
Certificates

Non-hazardous area

ATEX

CSA

FM

EAC

IECEx

NEPSI

TIIS
SIL

Not defined
Panel mounting

field
