iTHERM ModuLine TM121

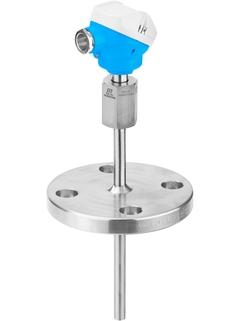

Product picture of Thermometer with RTD or TC insert TM121

Thermometer with RTD or TC insert complete with manufactured thermowell produced from pipe material

RTD or TC assembly characterized by basic sensor technology, application in non-hazardous areas, standard extension neck, low-cost unit. The devices are available with optional Bluetooth®-enabled head transmitters with 4 to 20 mA output or HART® communication, providing enhanced measurement accuracy and reliability compared to directly wired sensors.

Dimensionering
Prisoplysninger efter login og konfiguration

Sammenligne

Hurtigvalg

Vælg blandt de foreslåede muligheder

<%label%>
-- selected coding

-- selected label
<%label%>
Leder du efter flere indstillinger? Anvend denindividuelle konfiguratorfor at fortsætte.
<%feature%>
-- selected coding

-- selected label
<%feature%>
<%coding%>

<%label%>

Leder du efter flere indstillinger? Anvend denindividuelle konfiguratorfor at fortsætte.
Process Connection
<%coding%>

<%label%>

<%coding%>

<%label%>

<%message%>

Valgfrie tilføjelser

Anvend denindividuelle konfiguratorfor at fortsætte.

eller

Individuel konfiguration

Fortsæt dit valg blandt alle muligheder

Konfigurér

Yderligere komponenter

RNS221
Transmitter supply for DIN rail

Power supply for two 2 wire sensors or transmitters
Yderligere information
Sammenligne
RIA15
Loop-powered indicator for 4 to 20 mA or HART signals

For the indication of the 4 to 20 mA signal or the HART® values in the field or in the panel!
Yderligere information
Sammenligne
RMA42
Process transmitter with control unit

Universal transmitter, loop power supply, barrier and limit switch in one device!
Yderligere information
Sammenligne
Minilog B, RDL10
Data Logger

Data logger for display and storing measured values from an analog and digital input
Yderligere information
Sammenligne

Fordele
Economical, reliable measurement
User-friendly from product selection to maintenance

Wide range of process connections
Easy and safe device setup and service using Bluetooth® communication

Anvendelsesområde
Universal range of application
Application in non-hazardous areas

Measuring range: –50 to +650 °C (–58 to +1202 °F)

Pressure range up to 50 bar (725 psi)

Degree of protection: up to IP 68

Funktioner og specifikationer

Tilbage

Details

Measuring principle

Resistance Temperature Detector
Characteristic / Application

metric style

modular temperature assembly

universal range of application

with neck

incl. thermowell / protection tube (metal)
Terminal head

TA30A - comfort hinged cover E+H - Alu - low lid - with display

TA20AB - small lid with screews - Alu

TA30EB - comfort screewed cover E+H - Alu - low lid

Mignon Head - lid with screews - Alu
Thermowell / protection tube

welded protection tube or to be used with thermowell
Insert / probe

Basis Sensortechnologie
Outer diameter protection tube / Insert

Thermowell:

9x1,25 mm

11x2 mm
Max. immersion length on request

up to 1.000,0 mm (39'')
Material protection tube/ thermowell

316L (1.4404)
Process connection

Thread:

G1/2"

NPT1/2"

M20x1.5, M27x2, M33x2

Compression fitting:

NPT1/2", G1/2", G1"

Flansche:

DN25 DN40 B1

ASME 1" 150 RF

ASME 1" 300 RF

ASME 1 1/2" 150 RF

ASME 2" 150 RF

ASME 2" 300 RF
Tip shape

straight
Operating temperature range

Basic PT100 TF:

-50 °C …200 °C

(-58 °F …392 °F)

Thermocouple:

Typ K up to 600 °C (1.112 °F)
Max. process pressure (static)

depending on the configuration
Accuracy

Class A acc. to IEC 60751

Class B acc. to IEC 60751

Class standard acc. to ASTM E230

Class 2 acc. to IEC 60584-2
Response time

t90 around 100 s

depending on configuration
Integration head transmitter

yes (4 … 20 mA; HART)

Vis mere
Vis mindre

Dokumenter / Vejledninger / Software

Downloadtype

Filtrer

iTHERM ModuLine TM121
Metric version with basic technology for all standard applications.
Insert replaceable without process interruption

Technical Information (TI)
Modular thermometers Operating Instructions
Universal modular thermometers with RTD or TC insert for industrial
applications

Operating Instruction (BA)
Process RTD General purpose
Product Code: TM121-
Declaration Number: HE_01246_01.20
Manufacturer Specification: RoHS

Manufacturer Declaration

Engelsk
Process TC Heavy duty, Process TC General purpose, Process TC Direct contact, Process RTD Hygienic, Process RTD Heavy duty, Process RTD General purpose, Process RTD Direct contact, Low cost RTD General purpose
Product Code: TM412-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TST40N-, TST41N-, TST434-, TM411-, TAF11-, TAF12D-, TAF12S-, TAF12T-, TAF16-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM101-, TM111-, TM121-, TM131-, TM401-, TM402-
Declaration Number: EC_00136_02.16
